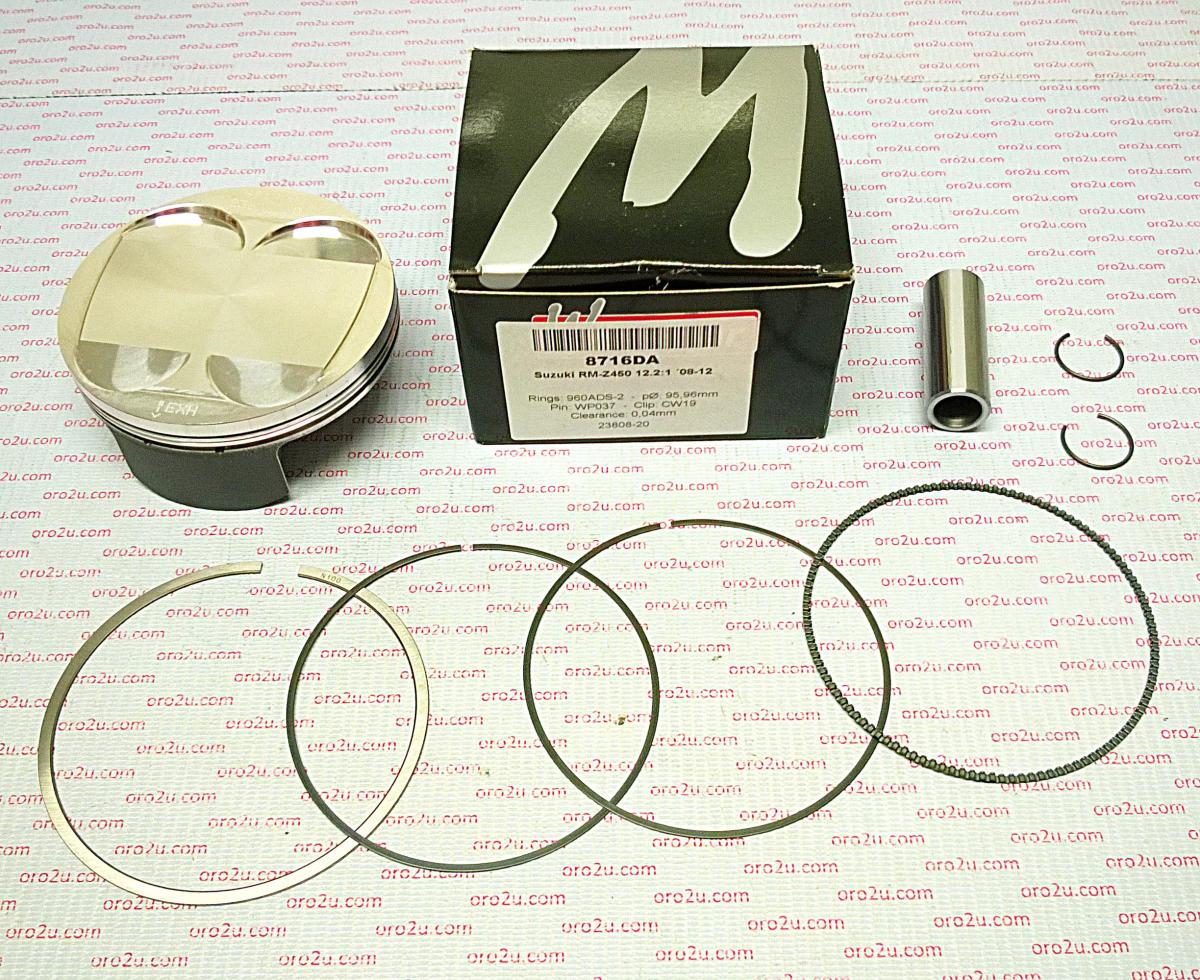

PISTON KIT 08-12 RMZ450 96mm, WOSSNER 8716DA SUZUKI FORGED, 12111-28H10-0F0

Piston kit 96mm Bore 95.96 Wossner 8716DA (STD)

SUZUKI
RM-Z450 2008 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4953.A.WO (oro2u.com)
Wossner Piston Kit (PN# 8716DA)
Lock P/N CW19
Pin P/N WP037
Ring Set P/N 960ADS-2
Main bearing P/N 'S
1 x MB83C072C (Right)
1 x MB830053-4 (Left)

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.20:1
Dome volume (cm3) -0.80
Compression height (mm) 23.10
Theorectical weight (G)

Cross reference numbers ONLY.
12111-28H10-0F0
