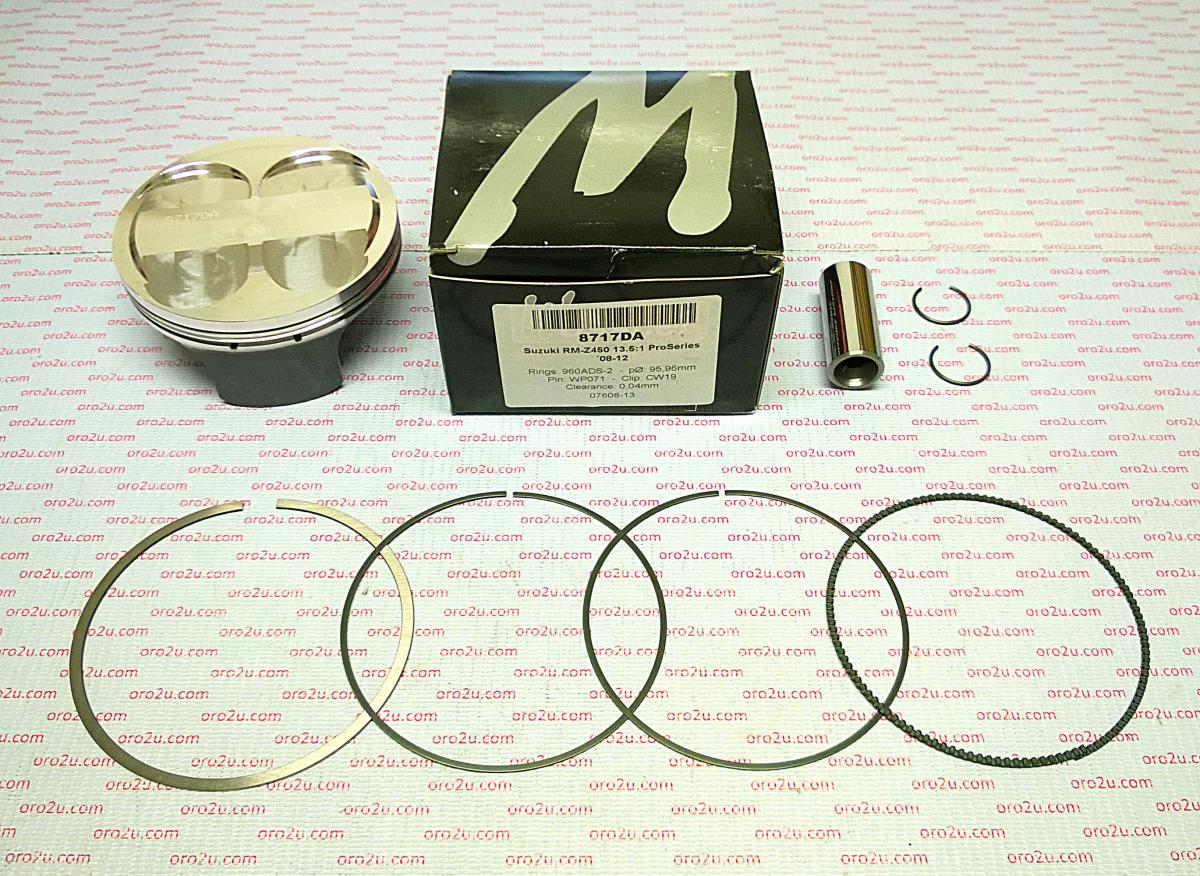

PISTON KIT 08-12 RMZ450 96 HC, FORGED WOSSNER 8717DC

Piston kit 96.02mm Bore 95.98 Wossner 8717DC (+0.02mm)

SUZUKI
RM-Z450 2008 - 2011,
(High compression)
(2 rings)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W307.C.WO (oro2u.com)
Wossner Piston Suzuki RM-Z450 96 mm Bore 8717DC
Compression Ratio 13.5:1
Lock P/N CW19
Pin P/N WP071
Ring Set P/N 960ADS-2
Rod P/N P4013

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: 13.20:1
OEM Compression ratio: 12.20:1
Dome volume (cm3) +3.40
Compression height (mm) 23.10
Theorectical weight (G)
