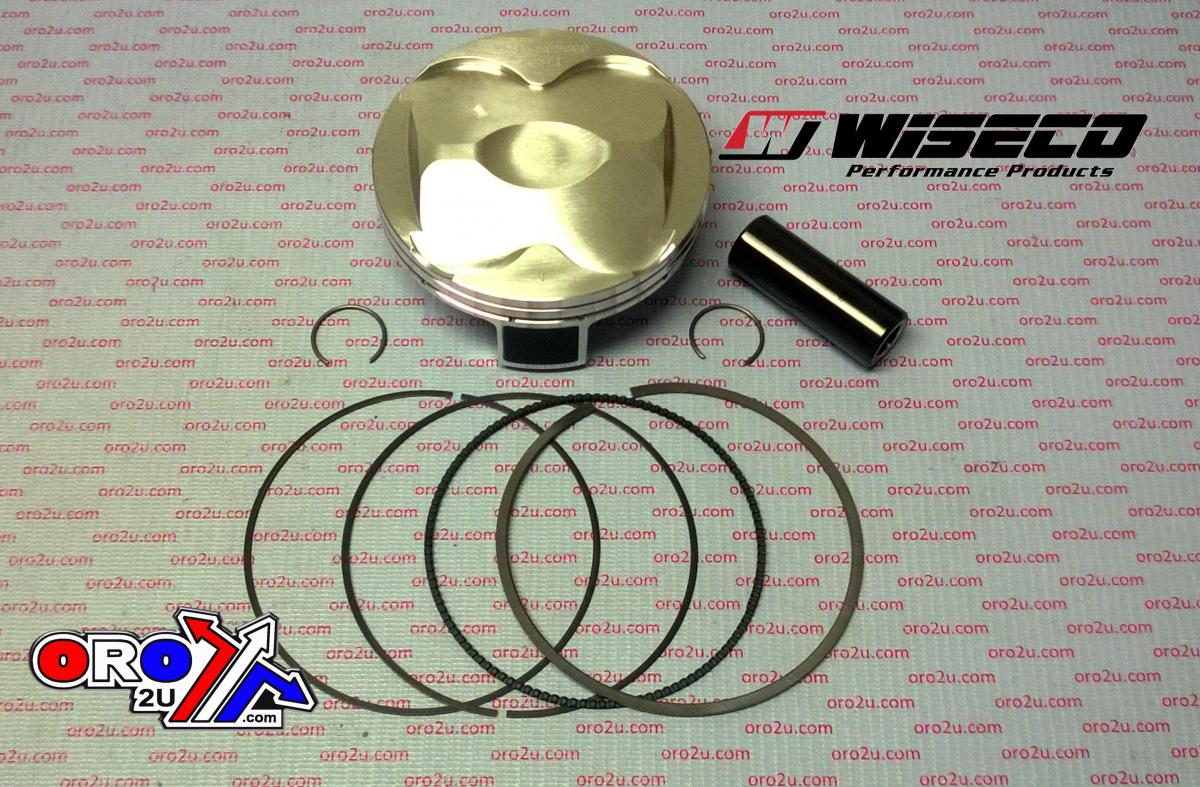

Wiseco Racer Elite Piston Kit 96.00 mm 14:1 CR for Suzuki RM-Z450 2008–2012 RE814M09600

Wiseco RE814M09600 is a piston kit for a 96.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: RE814M09600
• Product Series: 4 Stroke Racer Elite Series
• Bore Diameter: 96.00 MM
• Piston Diameter: 95.95 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 14:1

Included components

Ring Set #9600ZVZ, Piston pin #748-2050-16-93C, Circlip #CW19.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
