Wiseco Forged Piston Kit 96.00 mm 13.2:1 CR for Suzuki RM-Z450 2008–2012 4954M09600

Wiseco 4954M09600 is a piston kit for a 96.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4954M09600
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 96.00 MM
• Piston Diameter: 95.95 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 13.2:1

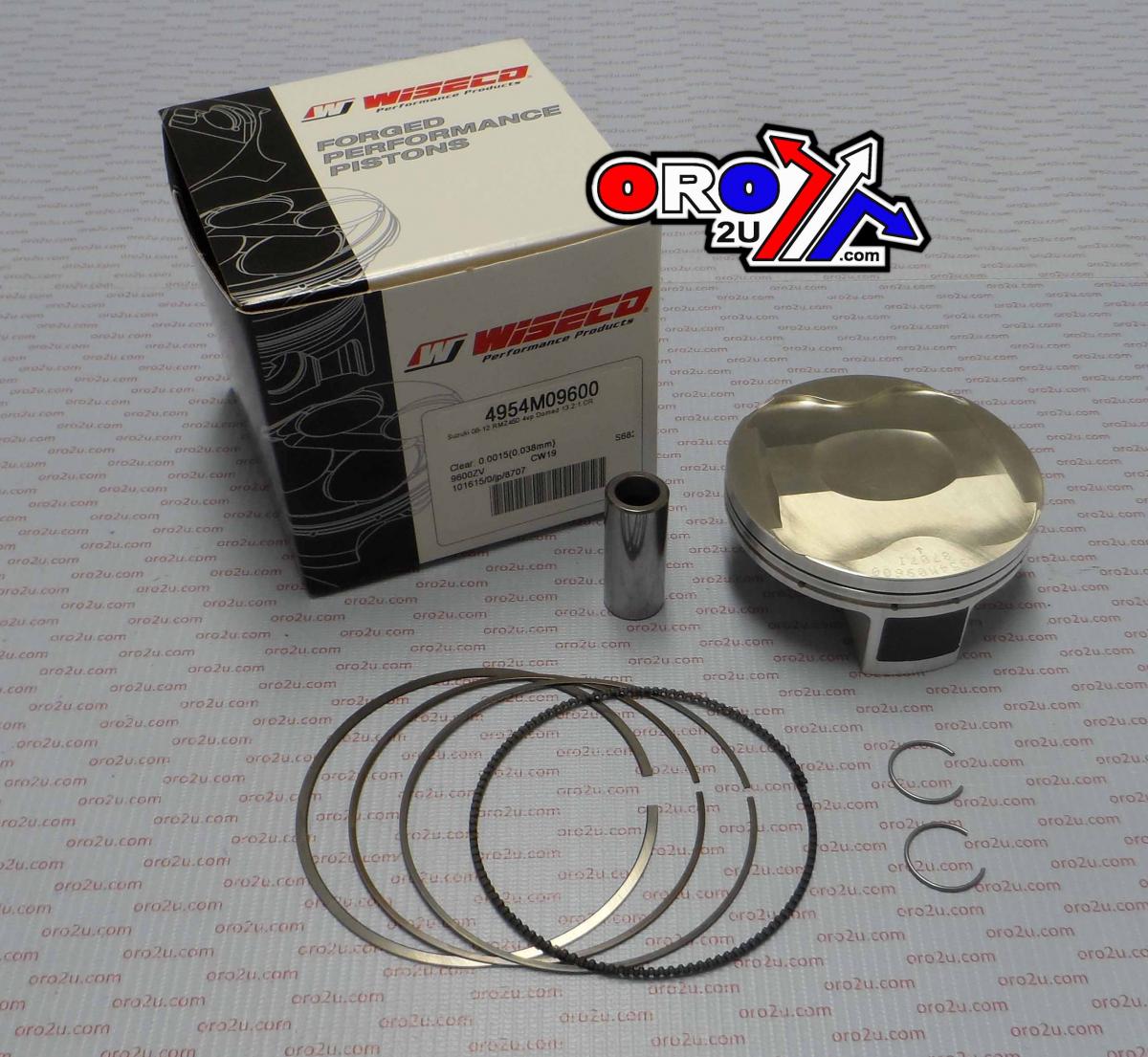

Included components

Ring Set #9600ZV, Piston pin #S682, Circlip #CW19.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
