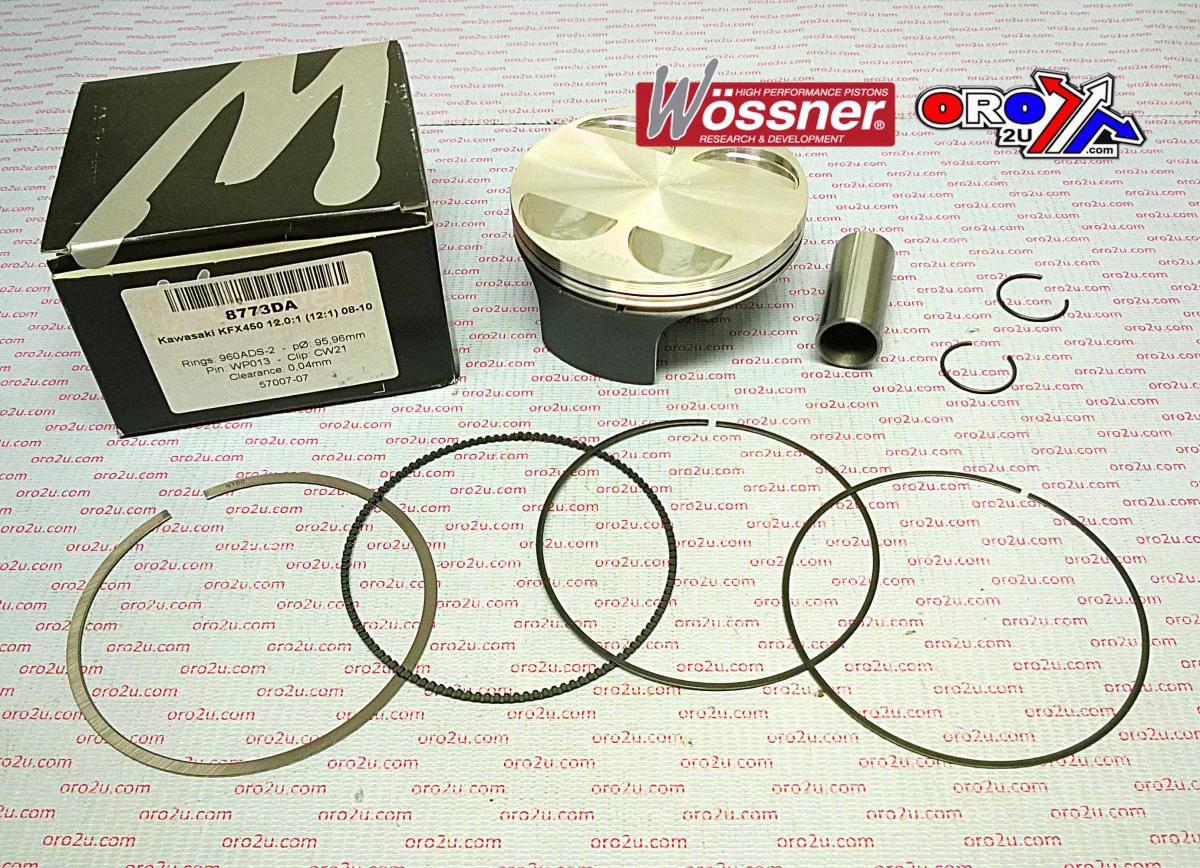

PISTON KIT 08-12 KFX450 96mm, WOSSNER 8773DA KAWASAKI 13001-0079

Piston kit 96mm Bore 95.96 Wossner 8773DA (STD)

KAWASAKI ATV
KFX450R 2008 - 2015,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4973.A.WO (oro2u.com)
Wossner Piston Kawasaki KFX450 96 mm Bore (PN# 8773DA)
Lock P/N CW21
Pin P/N WP051
Ring Set P/N 960ADS-2
Rod P/N P4019

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) -2.10
Compression height (mm) 26.10
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0079, 4973M09600
