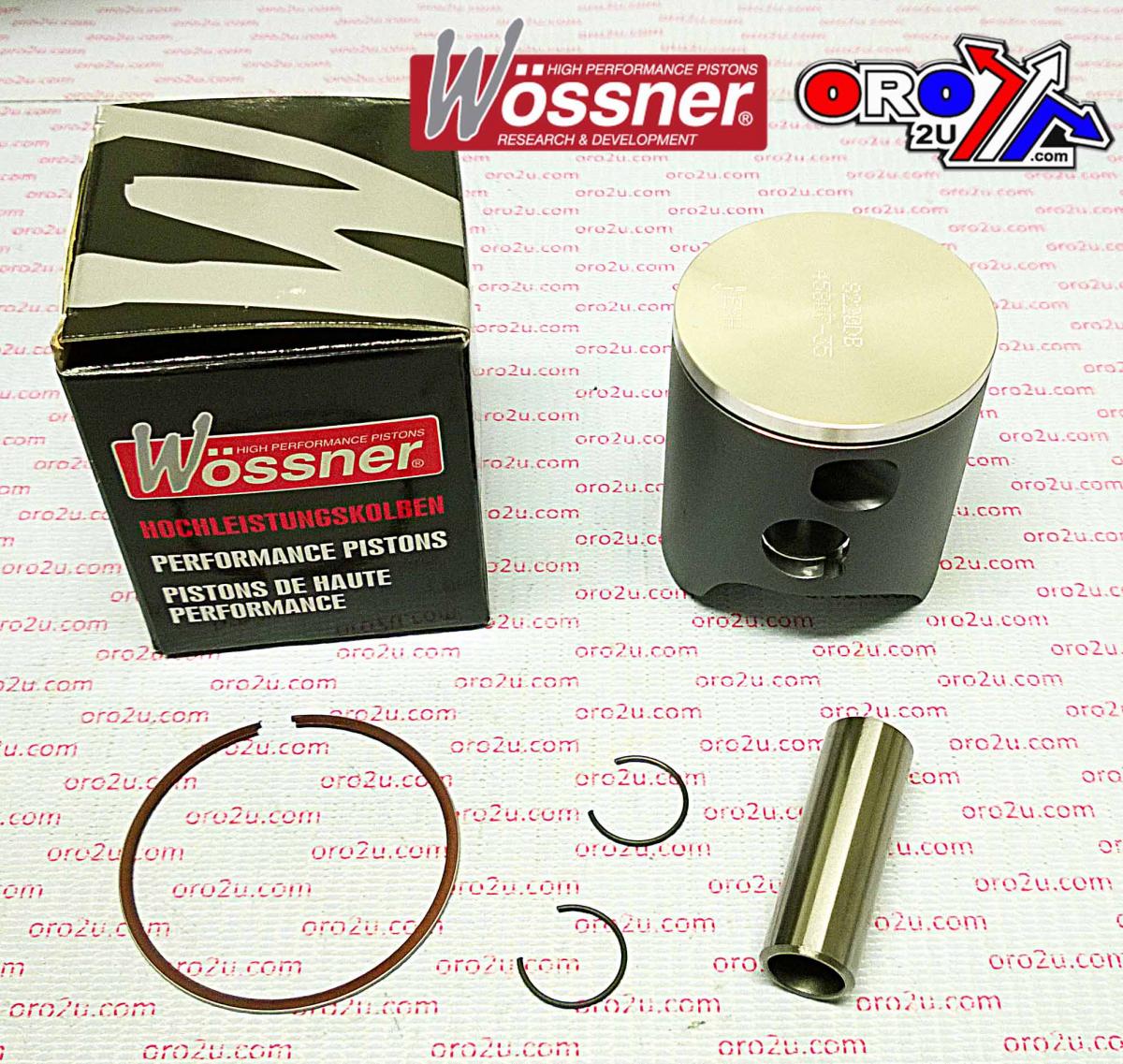

PISTON KIT 07-18 KTM SX125 54, FORGEDWOSSNER 8220DB

Piston Kit 54.01mm Bore 53.96 Wossner 8220DB (+0.01)

Husaberg
TE 125 2012 - 2014,

Husqvarna
TC 125 2014 - 2018,
TX 125 2017 - 2018,
TE 125 2014 - 2016,

KTM
125 SX 2007 - 2018,
125 XC-W 2007 - 2018,
125 EXC 2001 - 2016,
(Single ring)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W035.B.WO (oro2u.com)
Gasket P/N D2043
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSV5400
Rod P/N P2012
*Single Ring*

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: - 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 29.50
Theorectical weight (G) -
