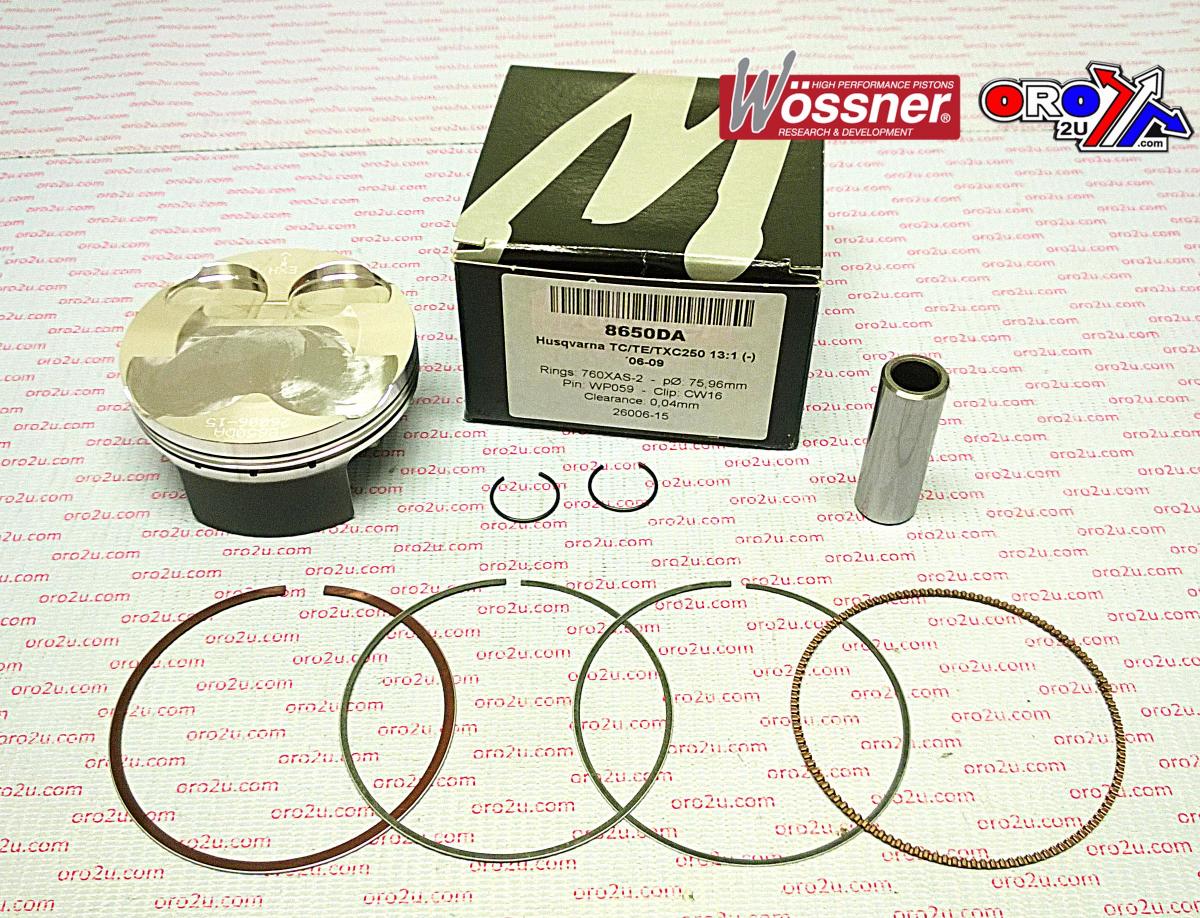

PISTON KIT 06-9 TC TE250 76.00, WOSSNER 8650DB HUSQVARNA

PISTON KIT 06-9 TC TE250 76.00, WOSSNER 8650DB HUSQVARNA

£174.55 GBP
£174.55 GBP
Sale Sold out
Taxes included.
  • Piston Kit: Wossner 8650DB, with a 76.02mm bore (+0.01mm)
  • Applications: Husqvarna TC250, TE250, and TXC250, produced between 2006 and 2009
  • Features:
    • Wossner forged pistons known for superior strength and design
    • Engineered for efficient combustion chamber heat transfer to cylinder walls
    • Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
  • Manufacturing: Made in Germany
  • Additional Parts:
    • Lock: CW16
    • Pin: WP059
    • Ring Set: 760XAS
  • Specifications:
    • Displacement: 249 cm³
    • Hub Stroke: 55.00mm
    • Clearance: 0.04mm
    • Wossner Compression Ratio: 13.00:1
    • OEM Compression Ratio: 12.90:1
    • Dome Volume: -2.70cm³
    • Compression Height: 20.00mm
    • Theoretical Weight: Not provided
