PISTON KIT 06-09 ZX14 KAW 86, WOSSNER K8785D200-4 ROAD, KAWASAKI

KAWASAKI
ZX14 2006 - 2009,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9816.86.WO (phoenixmotos.com)

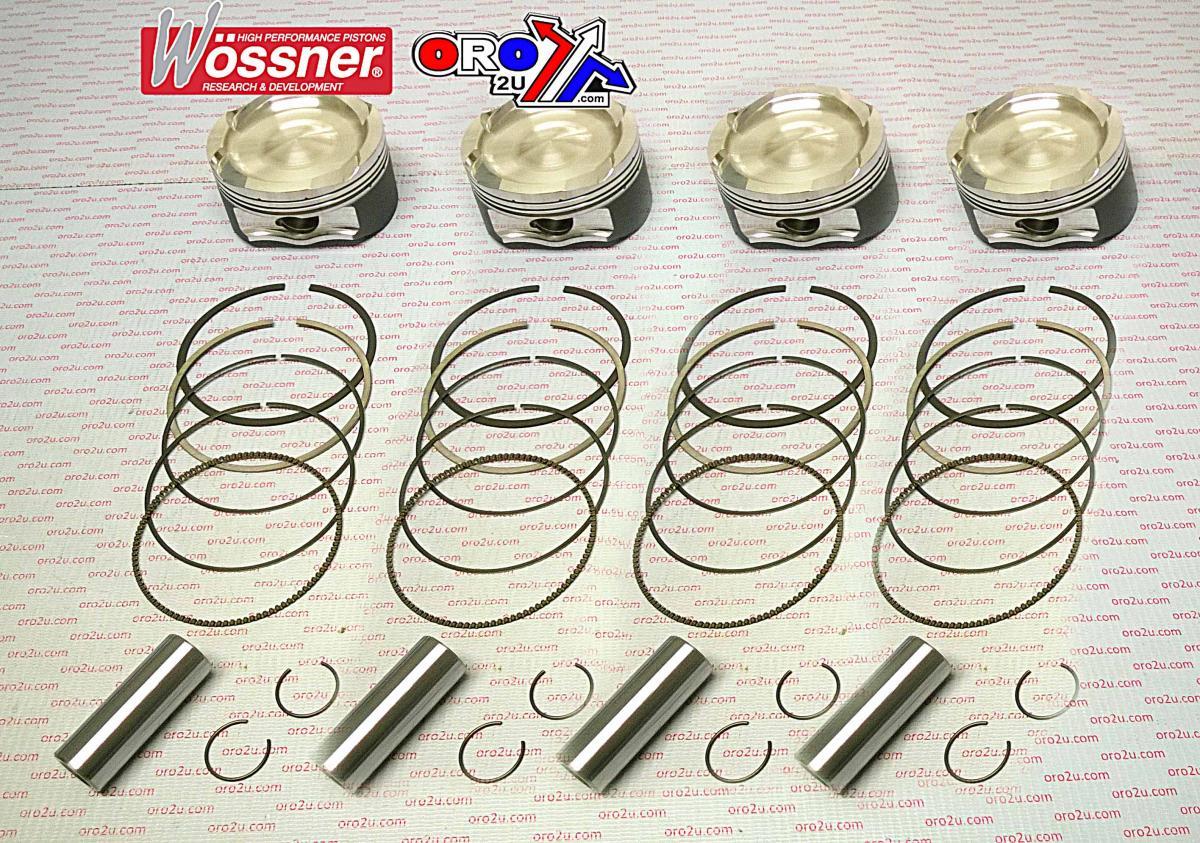

KAWASAKI 2006 - 2009 ZX14 PRO SERIES K8785D200-4 WOSSNER PISTON, 86(mm), HC flat top

Display (cm3) 1352
Hub stroke (mm) 61.00
Clearance (mm) 0.07
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) -2.40
Compression height (mm) 24.50
Theorectical weight (G)
