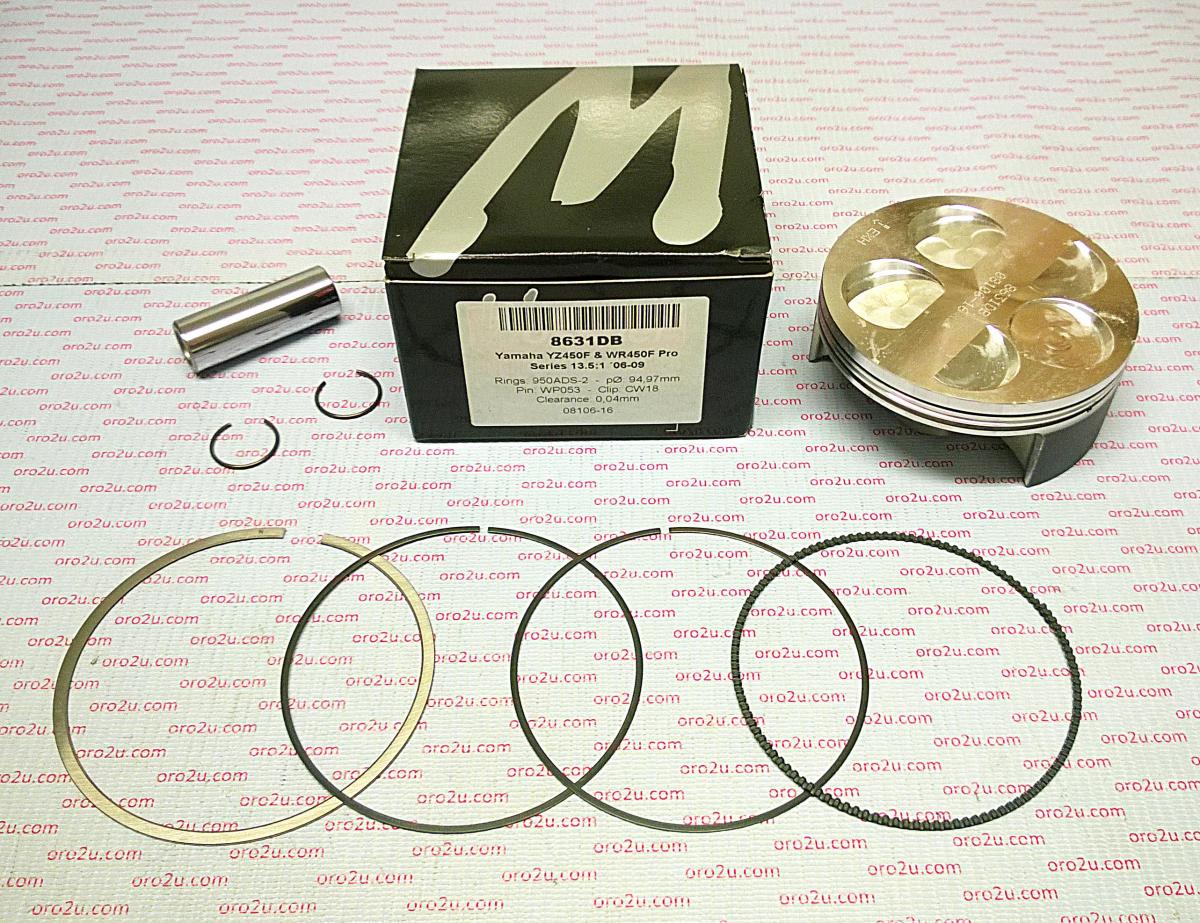

PISTON KIT 06-09 YZF WRF450 95, WOSSNER 8631DB HC YZF450

Piston kit 95.01mm Bore 94.97 Wossner 8631DB (+0.01)

GAS GAS
ECF450F 2013 - 2015,
YAMAHA
YZ450F 2006 -2009,
WR450F 2006 - 2009,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W223.WO.B (Ooro2u.com)
Compression Ratio 13.5:1 Wossner Piston 95.01 mm Bore (PN# 8631DB)
Lock P/N CW18
Pin P/N WP053
Ring Set P/N 950ADS-2
Rod P/N P4008

Display (cm3) 449
Hub stroke (mm) 63.40
Clearance (mm) 0.04
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 12.30:1
Dome volume (cm3) -6.10
Compression height (mm) 23.50
Theorectical weight (G)
