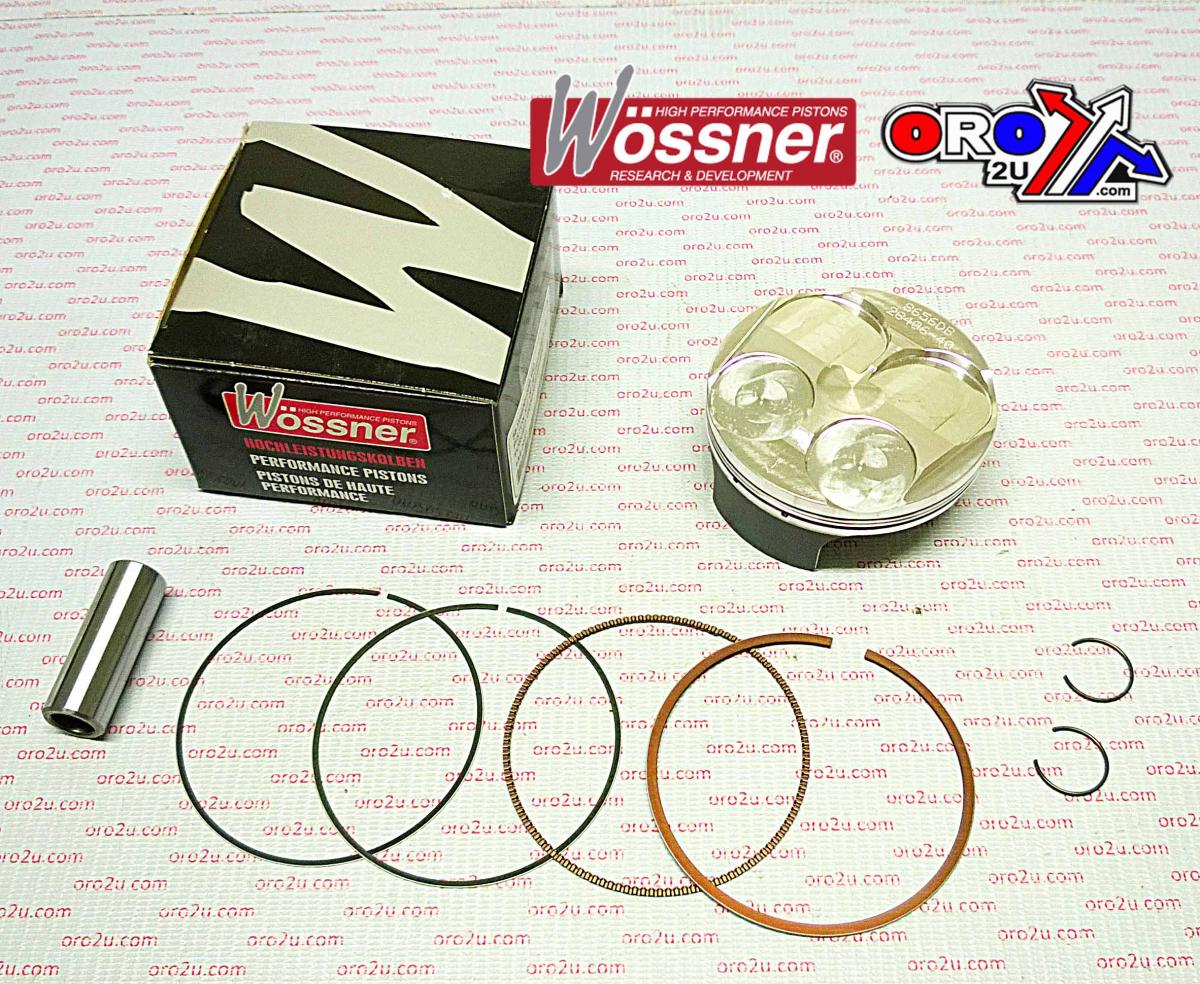

PISTON KIT 06-09 CRF250R X 80, FORGED WOSSNER 8656D200

Piston kit 80mm Bore 79.96 Wossner 8656D200 (+2.00)

HONDA
CRF250R 2006 - 2009,
CRF250X 2006 - 2009,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

PART NO. 56-W4830+200.WO (oro2u.com)
Wossner Piston Honda CRF250 80 mm Bore (PN# 8656D200)
Gasket P/N D4004 / D4004
Lock P/N CW16
Pin P/N WP059
Ring Set P/N 800XDS

Display (cm3) 249
Hub stroke (mm) 52.20
Clearance (mm) 0.04
Wossner compression Ratio:13.50:1
OEM Compression ratio: 12.90:1
Dome volume (cm3) -0.90
Compression height (mm) 24.00
Theorectical weight (G) 19.00
