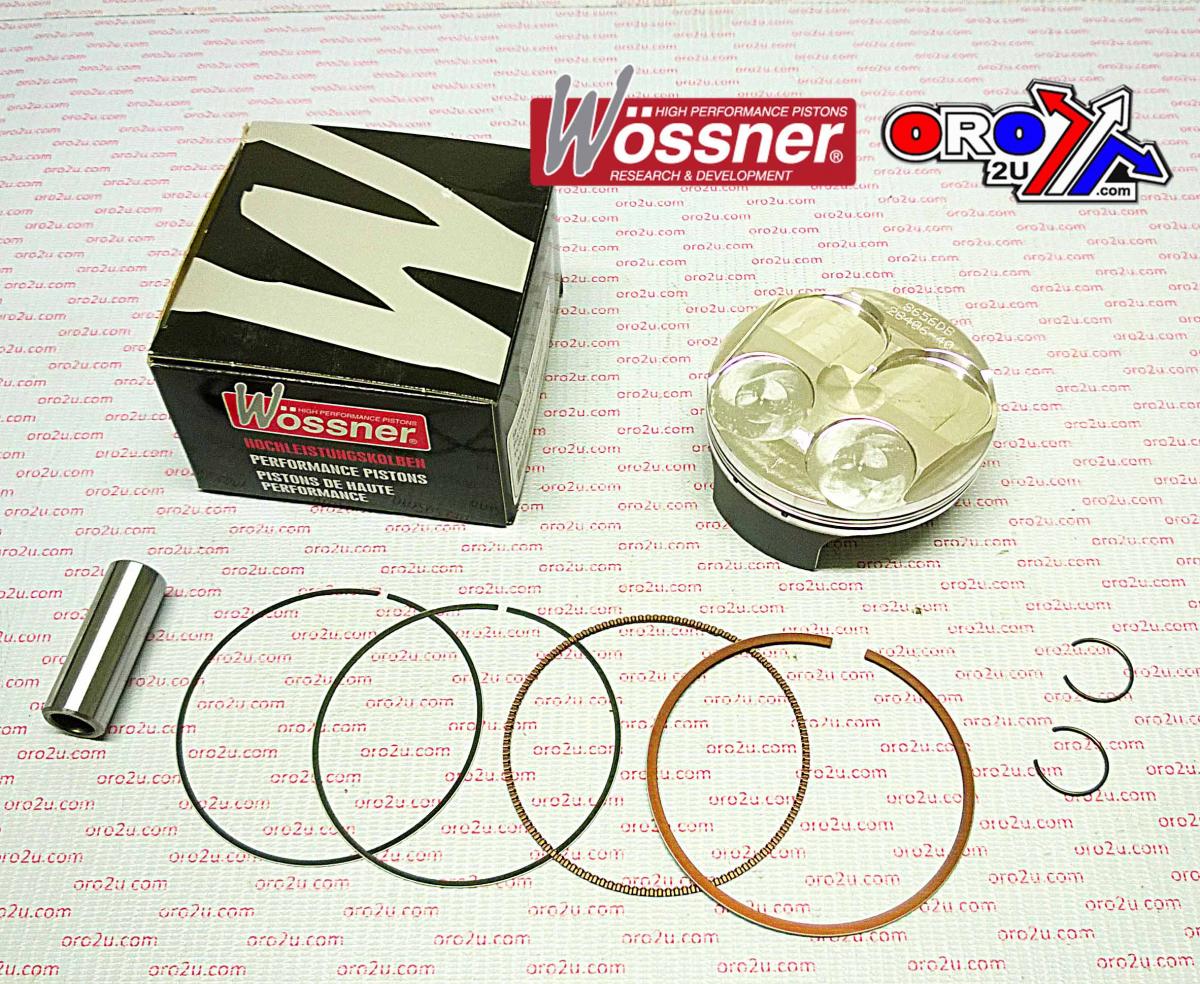

PISTON KIT 06-09 CRF250R X 78, FORGED WOSSNER 8656DB

Piston kit 78.01mm Bore 77.97 Wossner 8656DB (+0.01)

HONDA
CRF250R 2006 - 2009,
CRF250X 2006 - 2009,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

PART NO. 56-W4830+00B.WO (oro2u.com)
Wossner Piston Honda CRF250 78.01 mm Bore (PN# 8656DB)
Gasket P/N D4004 / D4004
Lock P/N CW16
Pin P/N WP059
Ring Set P/N 780XAS

Display (cm3) 249
Hub stroke (mm) 52.20
Clearance (mm) 0.04
Wossner compression Ratio:13.50:1
OEM Compression ratio: 12.90:1
Dome volume (cm3) -0.90
Compression height (mm) 24.00
Theorectical weight (G) 19.00
