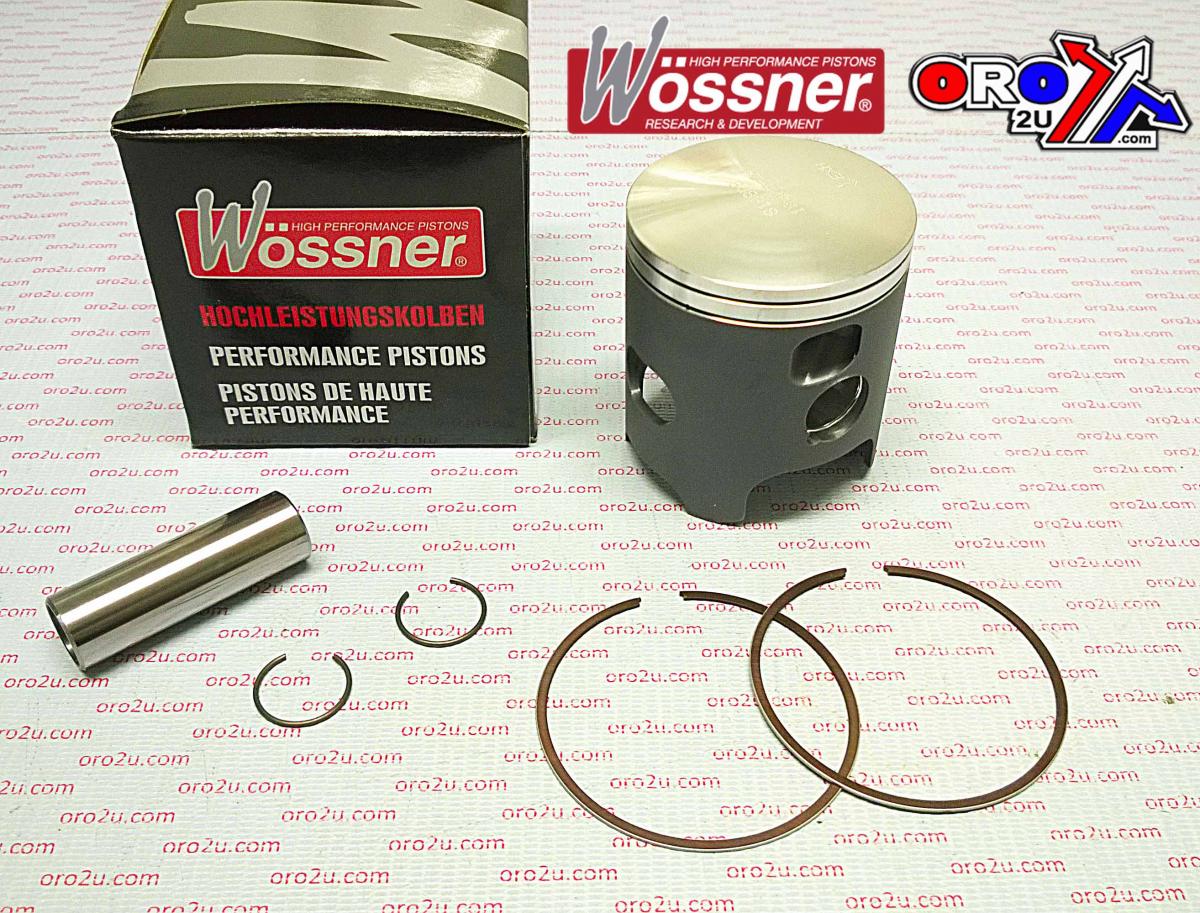

PISTON KIT 05-09 KX250 66.40 D, WOSSNER 8168DD KAWASAKI MX

Piston Kit 66.43mm Bore 66.37 Wossner 8168DC (+0.03)

KAWASAKI
KX250 2005 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W844.D.WO (oro2u.com) |
Wossner Piston Kawasaki KX250 66.43 mm Bore (PN# 8168DD)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640
Rod P/N P2022

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.00
Theorectical weight (G)

- 2005 Kawasaki KX 250 - 2006 Kawasaki KX 250 - 2007 Kawasaki KX 250 - 2008 Kawasaki KX 250 - 2009 Kawasaki KX 250
