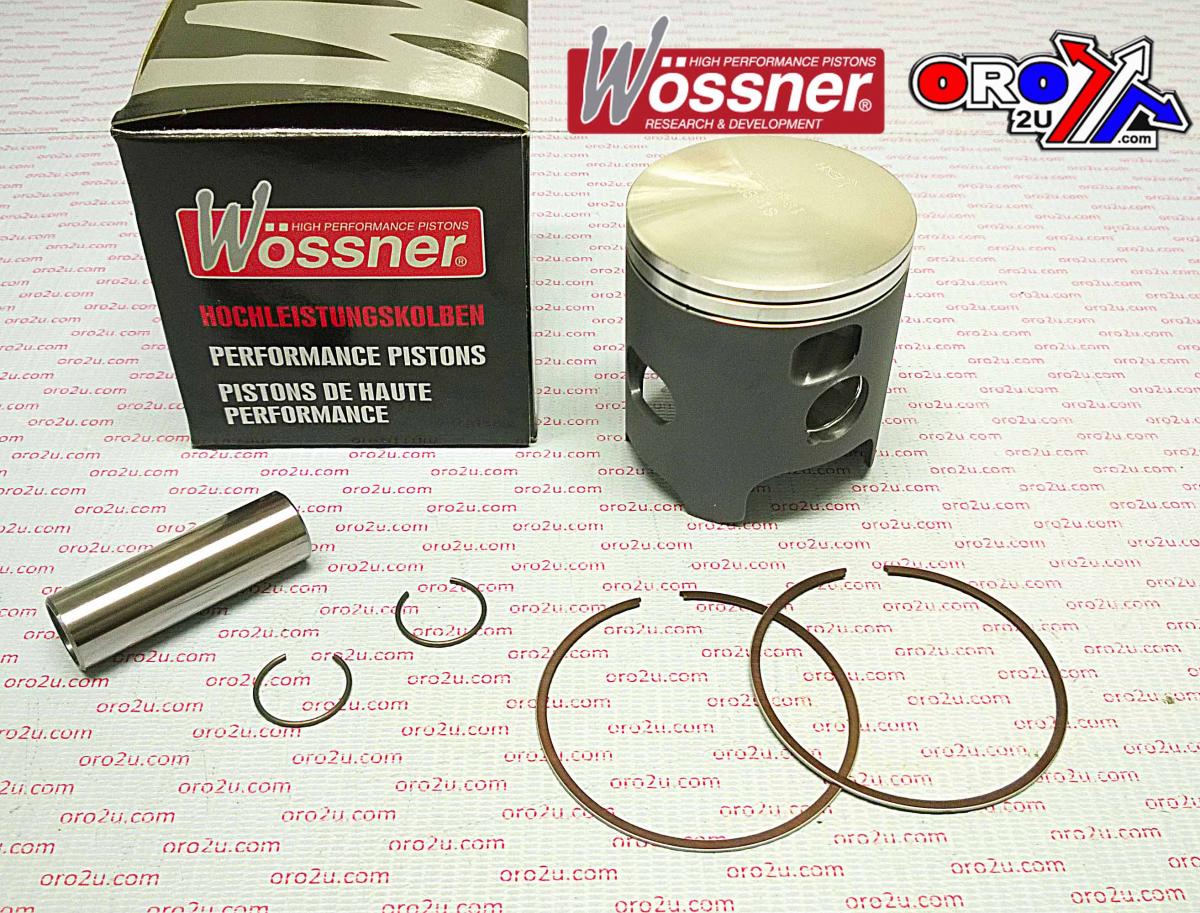

PISTON KIT 05-09 KX250 66.40 A, WOSSNER 8168DA KAWASAKI MX 13001-0058

Piston Kit 66.40mm Bore 66.34 Wossner 8168DA (STD)

KAWASAKI
KX250 2005 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W844.A.WO (oro2u.com)
Wossner Piston Kawasaki KX250 66.4 mm Bore (PN# 8168DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 X 2

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.00
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0058, 09104860, 843M06640
