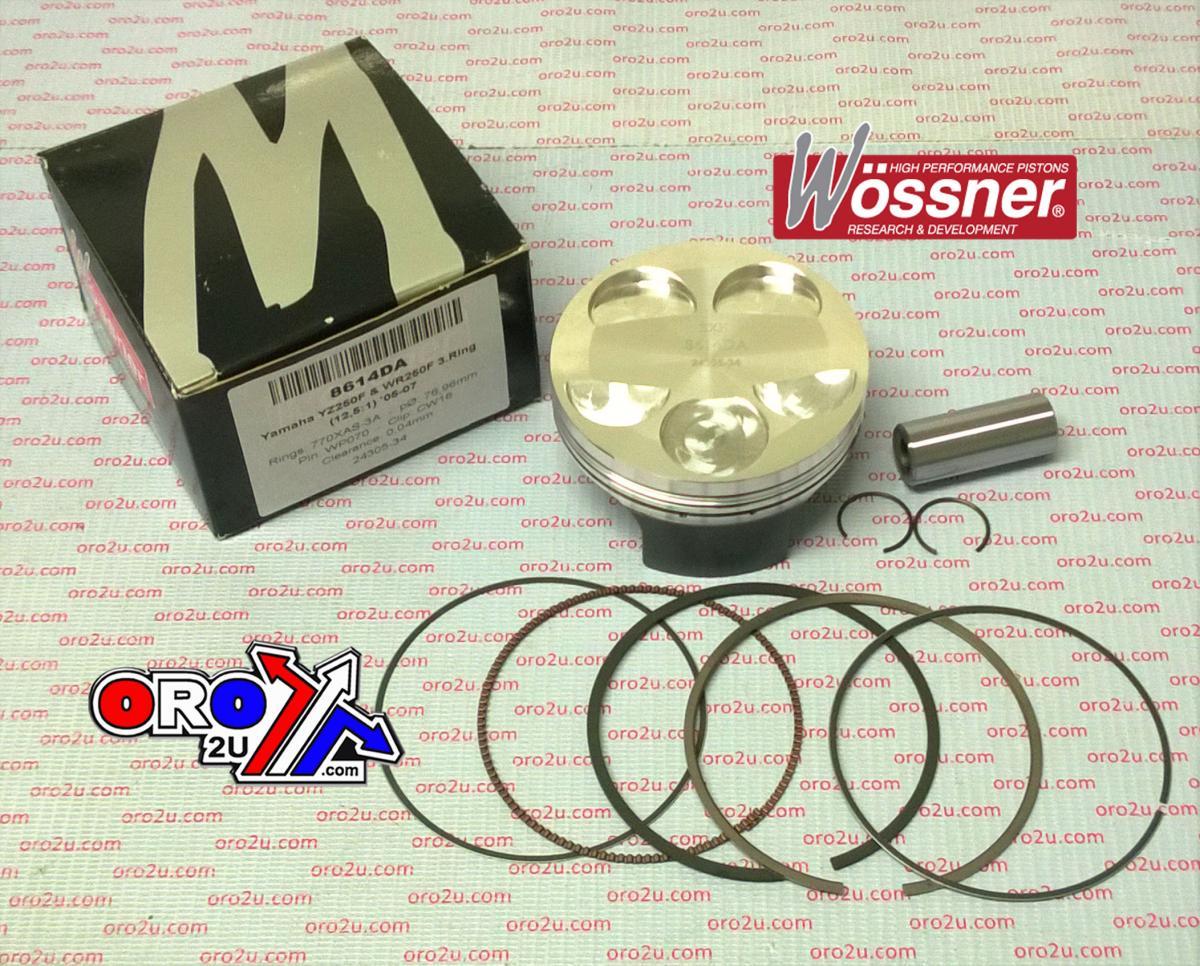

PISTON KIT 05-07 YZF250 79mm, WOSSNER 8614D200 2-RING

Piston kit 79.00mm Bore Wossner 8614D200 (+2.00)

YAMAHA
WR250F 2005-2007,
YZF250F 2005-2007,
GAS GAS
EC250F 2010 - 2015,
(3 Rings)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W189+200.WO (oro2u.com)
Wossner Piston Yamaha YZF250/WR250F 77 mm Bore (PN# 8614D200)
Lock P/N CW16
Pin P/N WP059
Ring Set P/N 790XMS
Rod P/N P4005 / P4005

Display (cm3) 249
Hub stroke (mm) 53.6
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) -4.50
Compression height (mm) 22.20
Theorectical weight (G)
