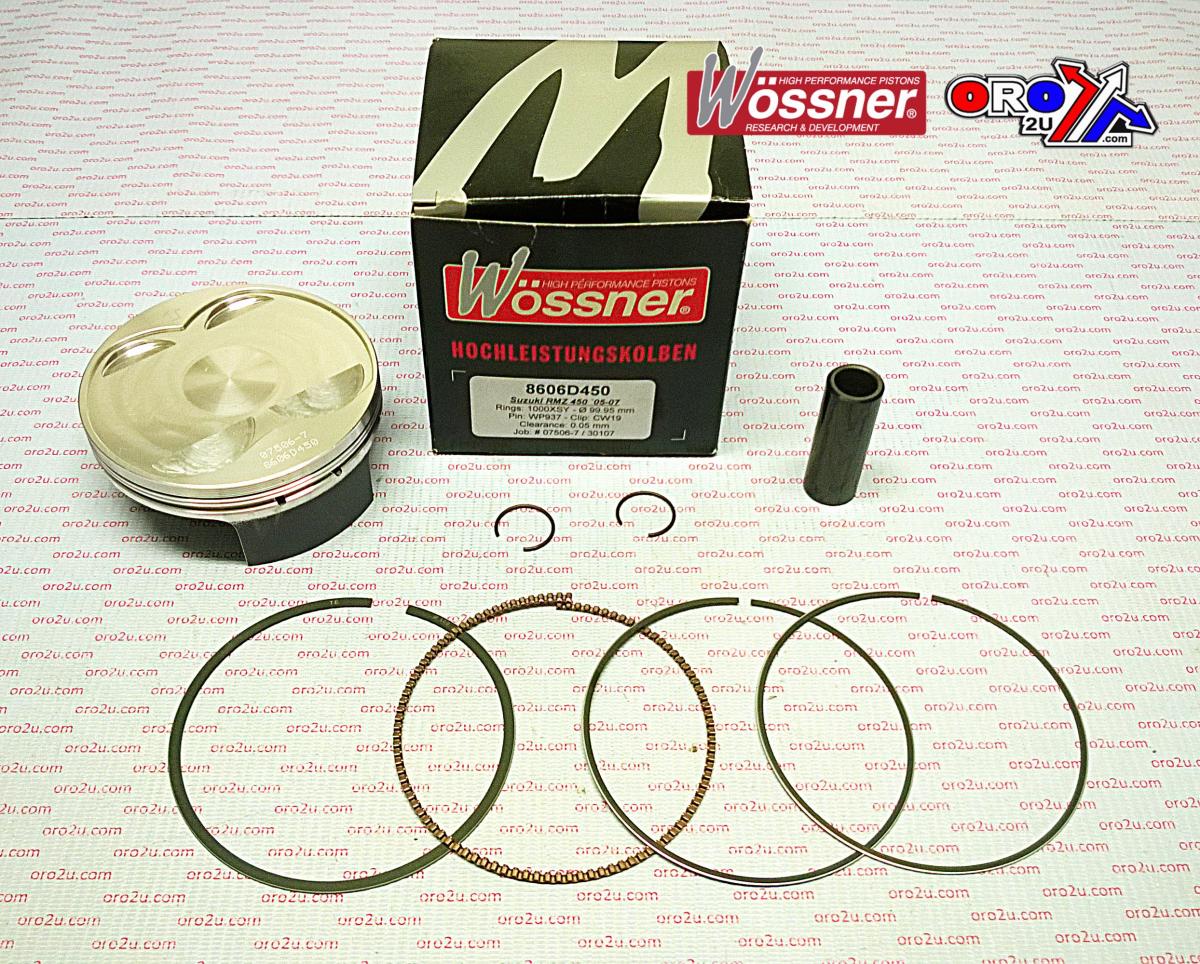

PISTON KIT 05-07 RMZ450 95.50, FORGED WOSSNER 8606DA, 12111-35G01-0F0

Piston kit 96mm Bore 95.46 Wossner 8606DA (STD)

SUZUKI
RM-Z 450 2005 - 2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W185.P0.WO (oro2u.com)
Wossner Piston Suzuki RMZ450 95.5 mm Bore (PN# 8606DA)
Lock P/N CW19
Pin P/N WP037
Ring Set P/N 955XSY

Display (cm3) 449
Hub stroke (mm) 62.60
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -3.10
Compression height (mm) 22.30
Theorectical weight (G)

Cross reference numbers ONLY.
12111-35G01-0F0
