Wiseco Forged Piston Kit 95.50 mm 12:1 CR for Suzuki RM-Z450 2005–2007 4869M09550

Wiseco 4869M09550 is a piston kit for a 95.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4869M09550
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 95.50 MM
• Piston Diameter: 95.44 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 12:1

Included components

Ring Set #9550ZV, Piston pin #S682, Circlip #CW19.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

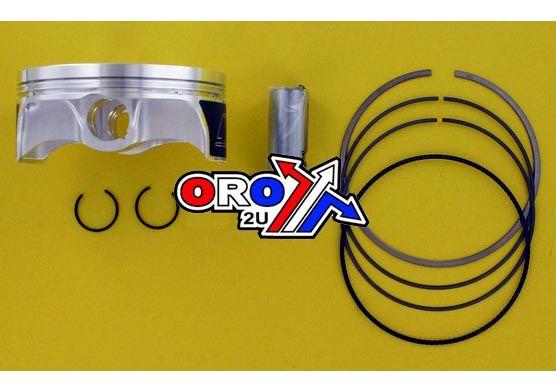

Manufacturer photograph for this reference. Packaging presentation may change.
