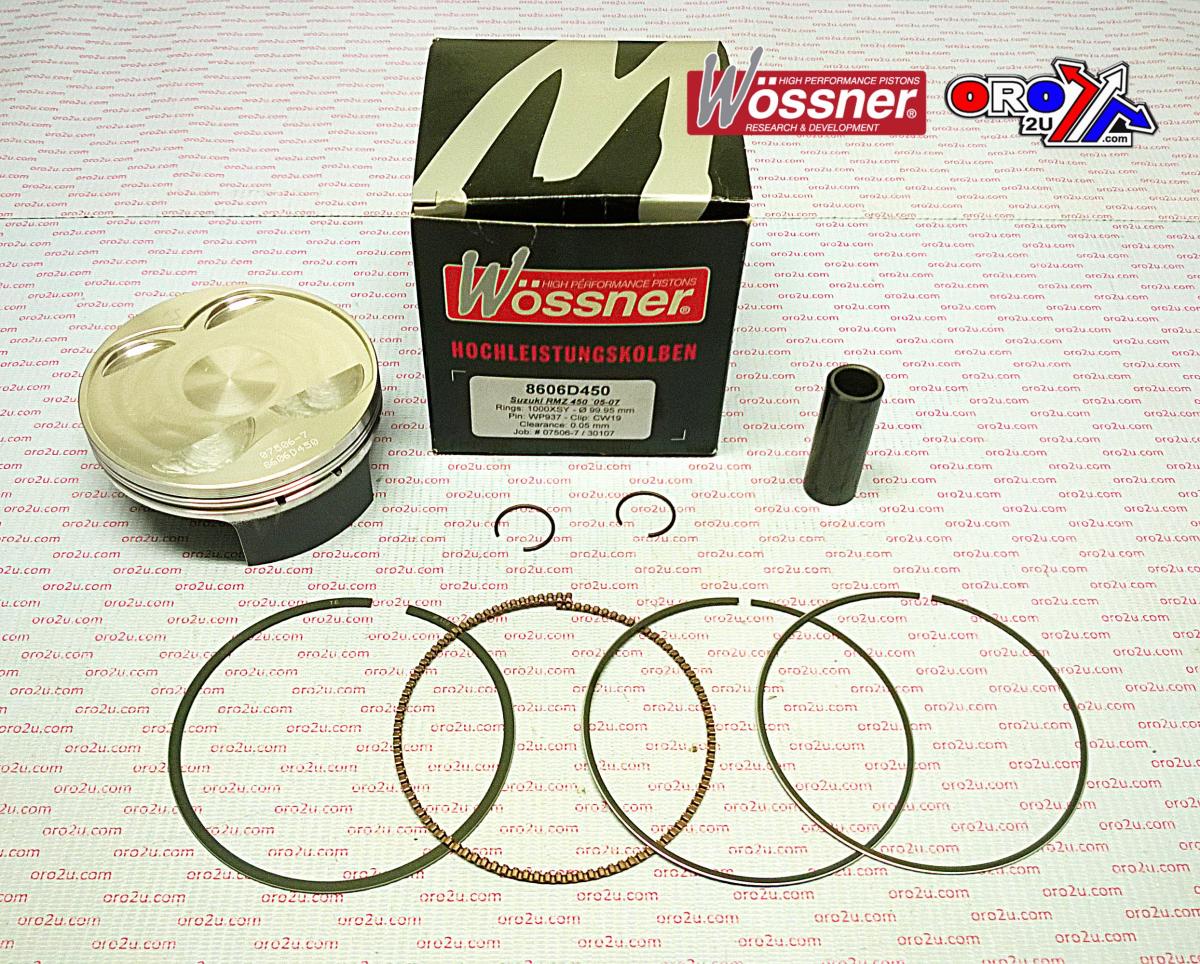

PISTON KIT 05-07 RMZ450 100.00, WOSSNER 8606D450 BIG BORE

Piston kit 100mm Bore 99.96 Wossner 8606D450 (+4.50)

SUZUKI
RM-Z 450 2005 - 2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W185_450.WO (oro2u.com)
Wossner Piston Suzuki RMZ450 100 mm Bore (PN# 8606D450)
Lock P/N CW19
Pin P/N WP037
Ring Set P/N 1000XSY

Display (cm3) 449
Hub stroke (mm) 62.60
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -3.10
Compression height (mm) 22.30
Theorectical weight (G)
