Wiseco Forged Piston Kit 95.00 mm 12.4:1 CR for Yamaha YFZ450 2004–2013 4835M09500

Wiseco 4835M09500 is a piston kit for a 95.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4835M09500
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 95.00 MM
• Piston Diameter: 94.94 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 12.4:1

Included components

Ring Set #3741XS, Piston pin #S641, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

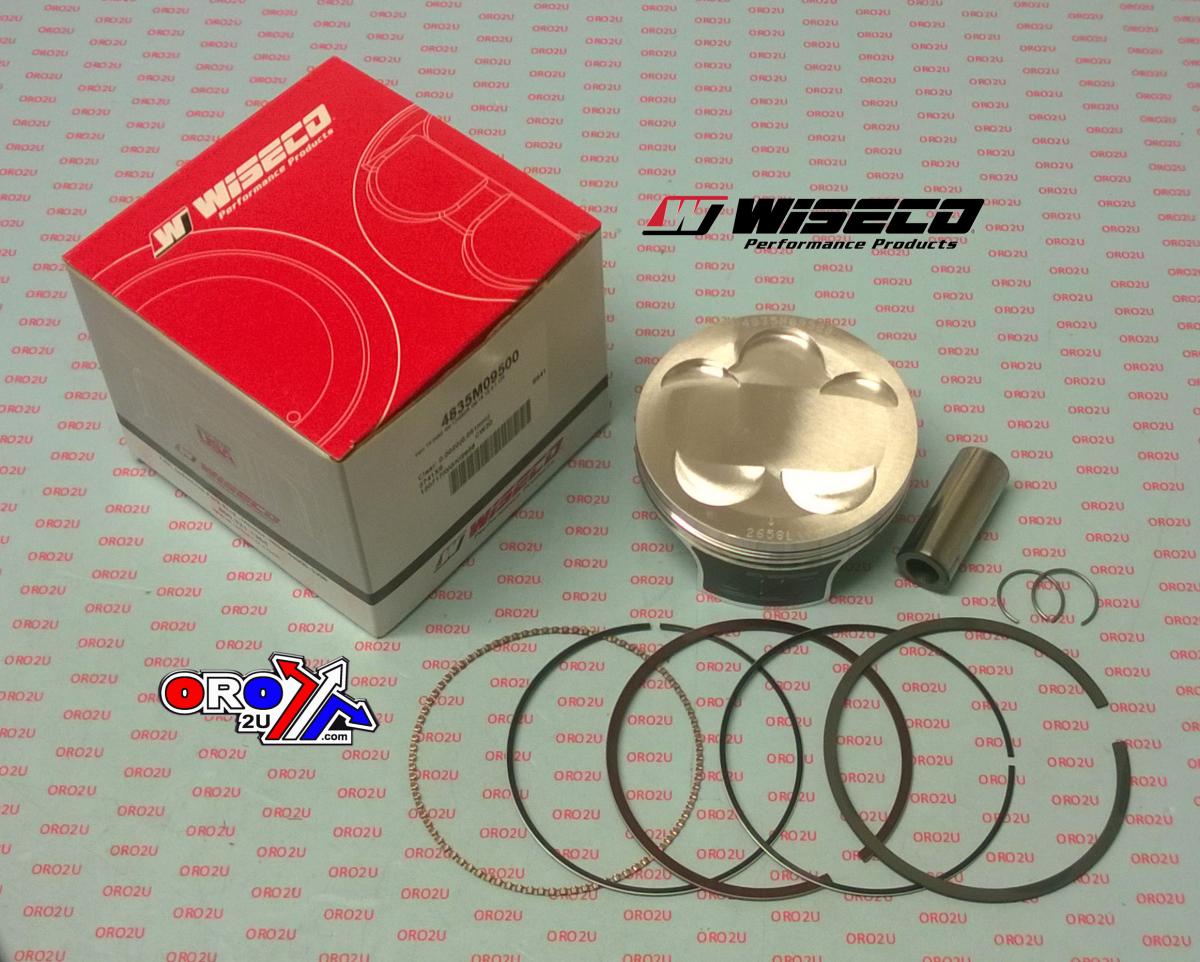

Manufacturer photograph for this reference. Packaging presentation may change.
