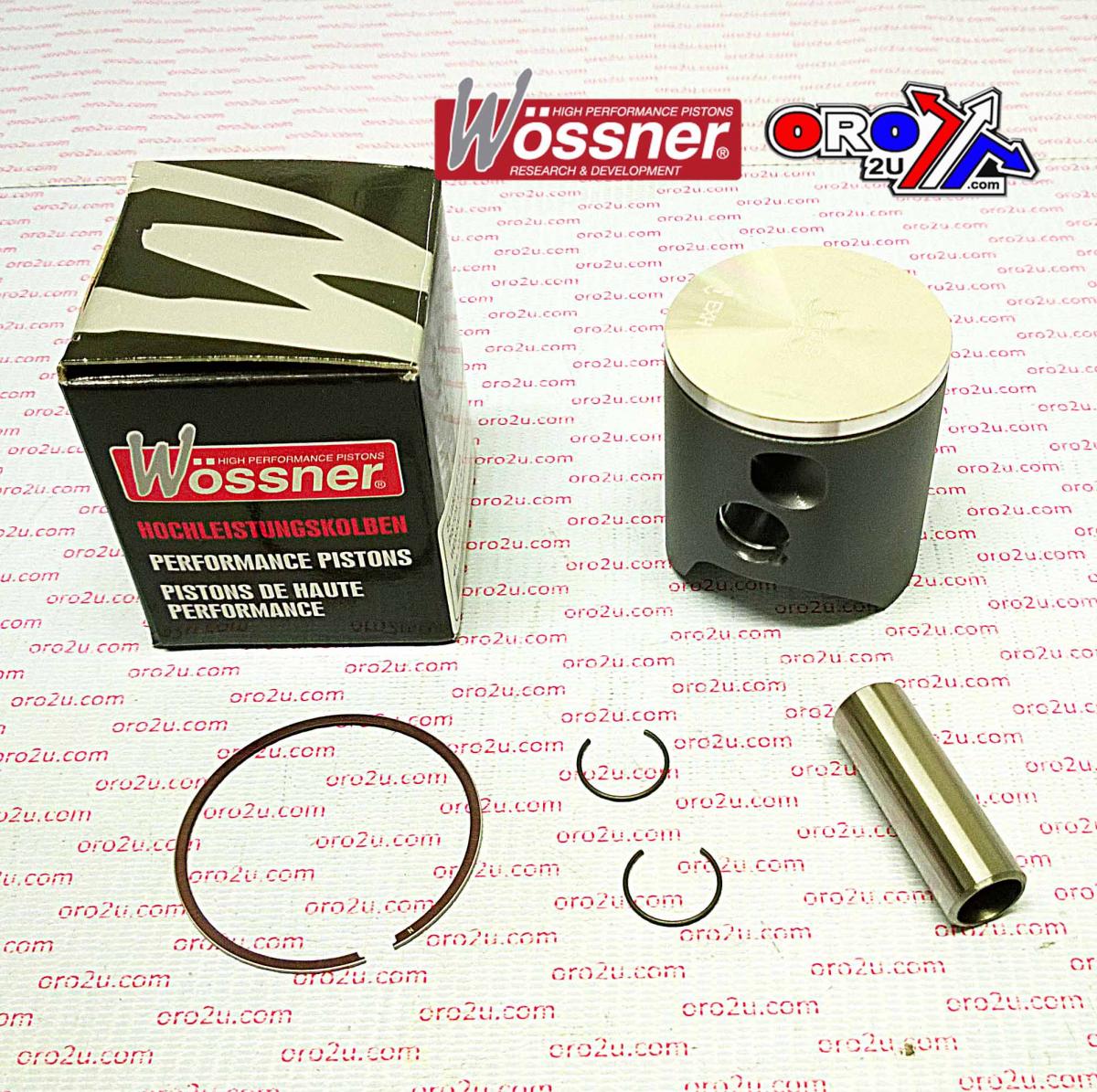

PISTON KIT 04-10 RM125 54.00 A, WOSSNER 8098DA SUZUKI MX 12110-36E31-0F0

Piston Kit 54mm Bore 53.95 Wossner 8098DA (STD)

SUZUKI
RM125 2004 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W835.A.WO (oro2u.com)
Wossner Piston Suzuki RM125 54 mm Bore (PN# 8098DA)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2016

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)

Cross reference numbers ONLY.
12110-36E31-0F0, 09104823, 835M05400

- 2004 Suzuki RM 125 - 2005 Suzuki RM 125 - 2006 Suzuki RM 125 - 2007 Suzuki RM 125 - 2008 Suzuki RM 125 - 2009 Suzuki RM 125

Cross reference numbers ONLY. 12101-36821 [ 12110-36F00-0F0 + 12141-36F00 + 12151-01B41 + 09381-15001 ]
