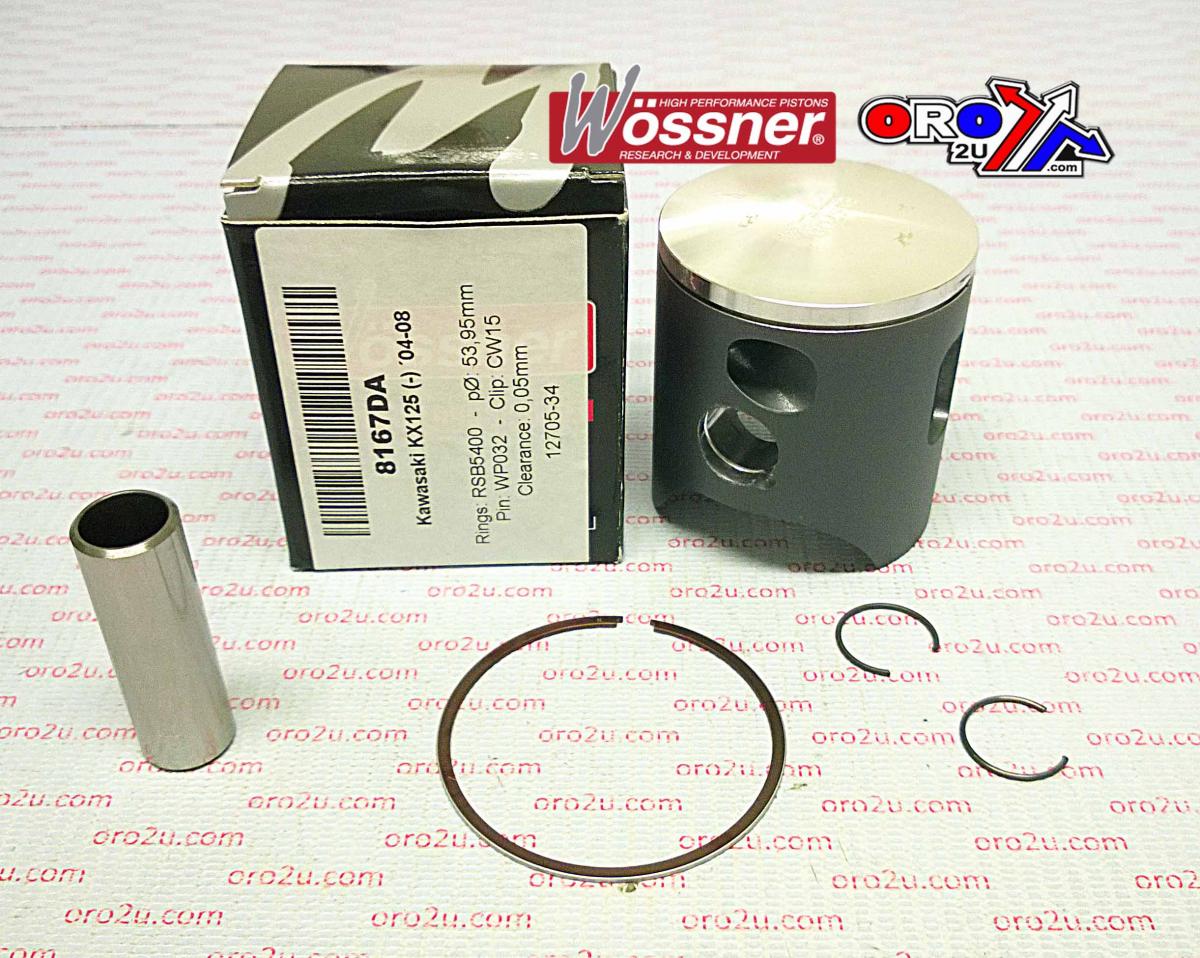

PISTON KIT 04-09 KX125 54.00 A, WOSSNER 8167DA KAWASAKI MX 13001-0009

Piston Kit 54.00mm Bore 53.95 WOSSNER 8167DA (STD)

KAWASAKI
KX125 2004-2009,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W834.A.WO (oro2u.com)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Connecting Rod Kit P/N P2010

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.30
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0009, 09104857, 834M05400
