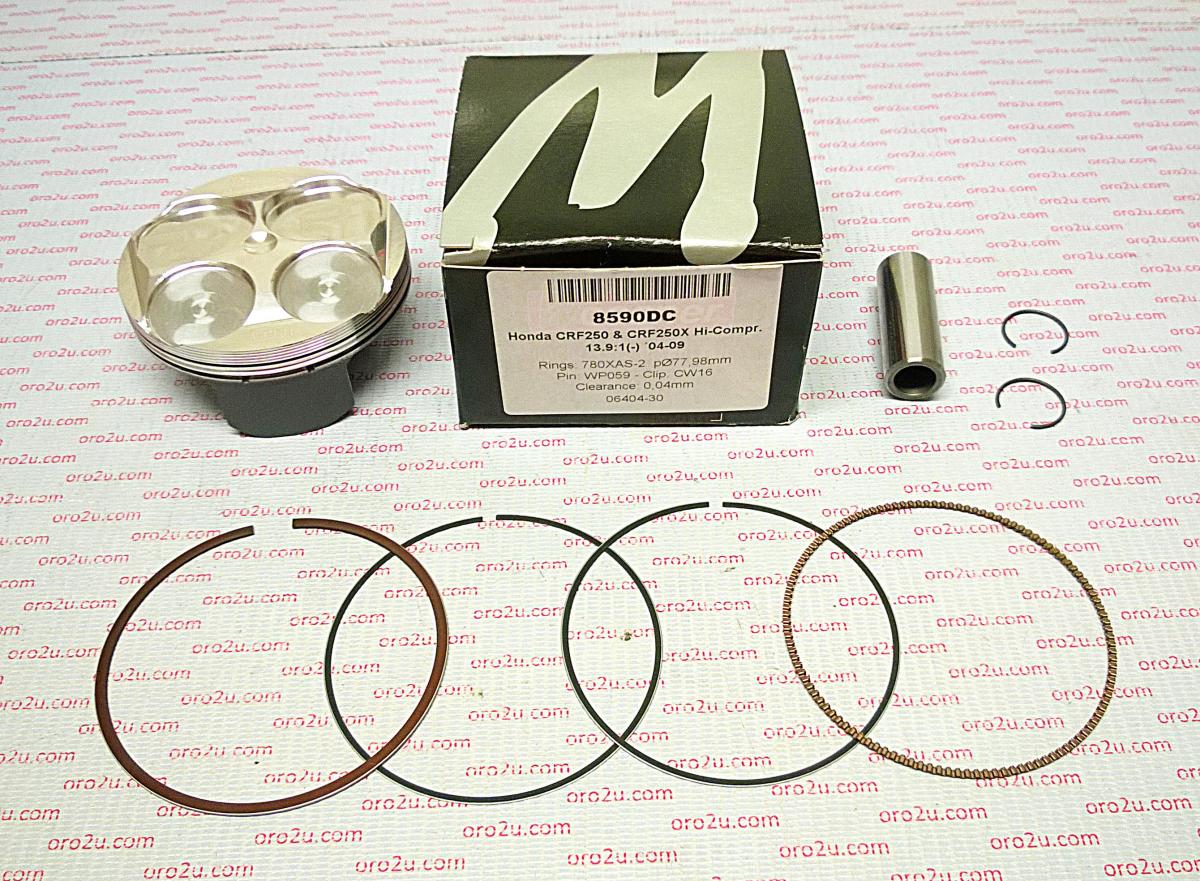

PISTON KIT 04-09 CRF250 HC 78, WOSSNER 8590DB FORGED

Piston kit 78.01mm Bore 77.97 Wossner 8590DB (+0.01)

HONDA
CRF250R 2004 - 2009,
CRF250X 2004 - 2009,
(High compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

PART NO. 56-W4852.B.WO (oro2u.com)
Wossner Piston Honda CRF250 R / X 2004-2009 (PN# 8590DB)
Lock P/N CW16
Pin P/N WP059
Ring Set P/N 780XAS
Rod P/N P4001 2010 - Current

Display (cm3) 450
Hub stroke (mm) 52.20
Clearance (mm) 0.04
Wossner compression Ratio: 13.90:1
OEM Compression ratio: 12.90:1
Dome volume (cm3) +0.00
Compression height (mm) 19.00
Theorectical weight (G)
