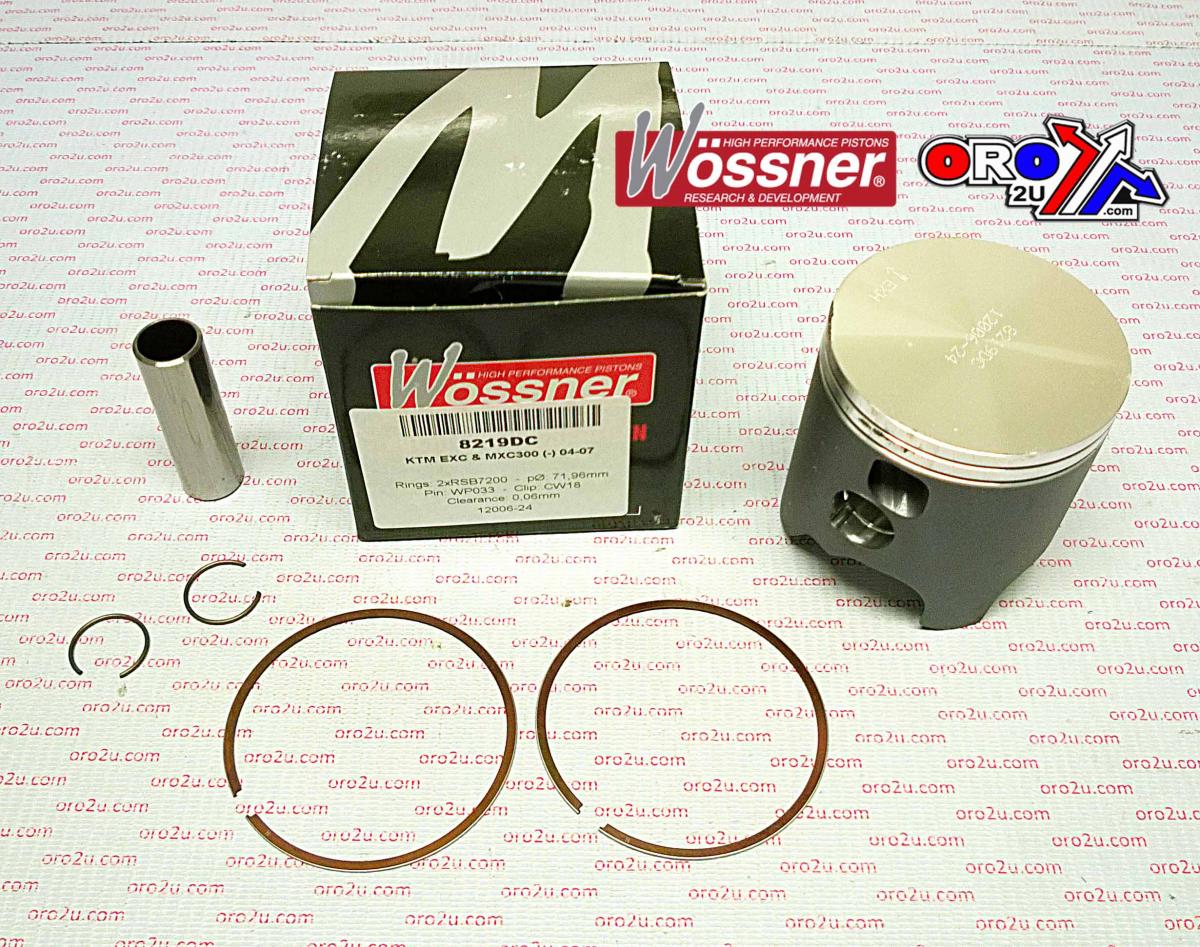

PISTON KIT 04-07 KTM300 72.00, WOSSNER 8219DA FORGED 55430007000

KTM
EXC 300 2004 - 2007,
MXC 300 2004 - 2007,
XC 300 2004 - 2007,
XC-W 300 2004 - 2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W858.A.WO (phoenixmotos.com)
Rings (2x)RSB7200
Lock CW18
Pin P/N WP033
Gasket P/N D2024-EST
Rod P/N P2023

Display (cm3) 293
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
55430007000, 09104880 , 858M07200
