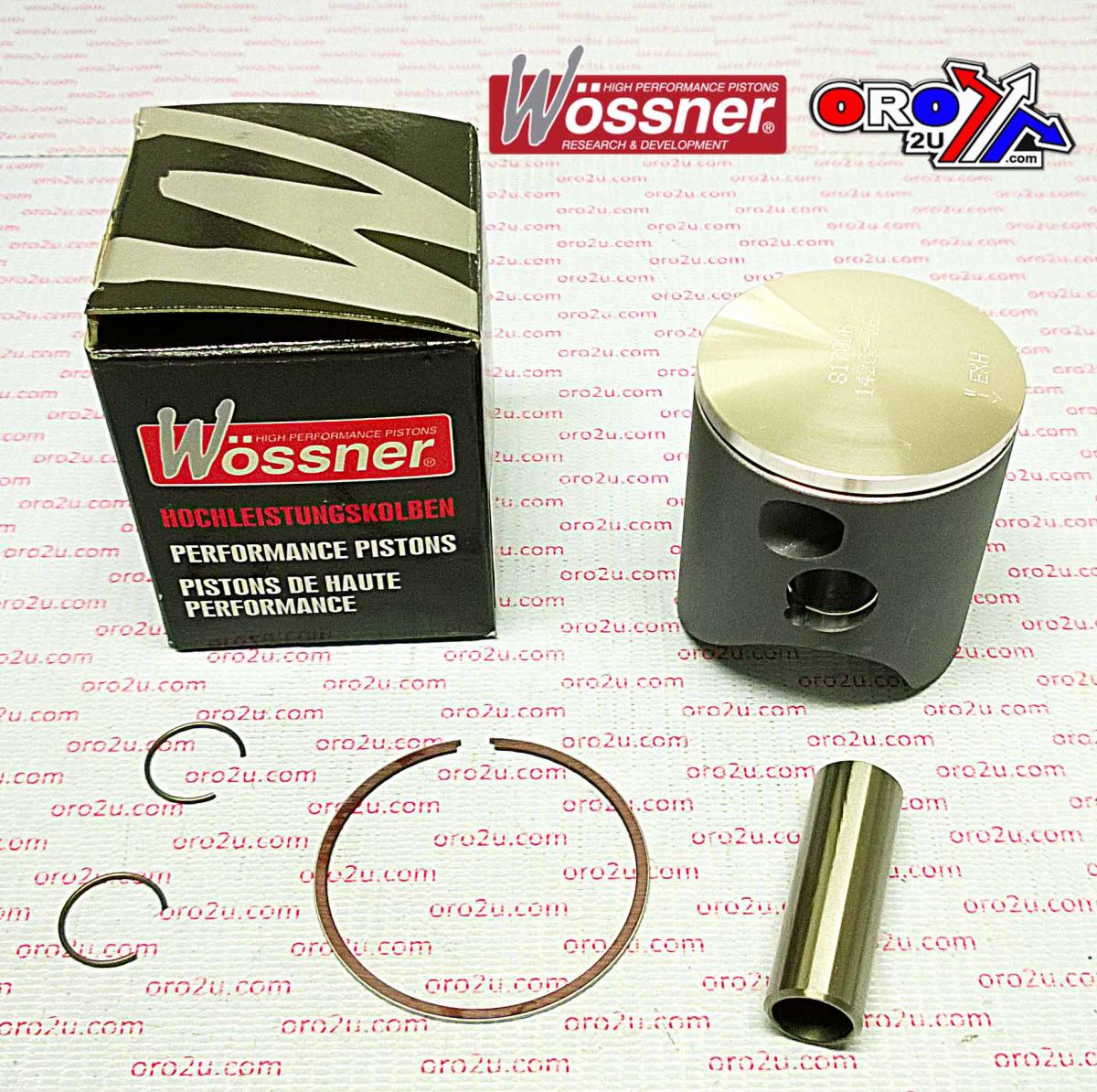

PISTON KIT 04-07 CR125 56.00, WOSSNER 8170D200 HONDA MX

Piston Kit 56.00mm Bore 55.95 Wossner 8170D200 (+2.00]

HONDA
CR125R 2005-2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W859_200.WO (oro2u.com)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5600
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 28.00
Theorectical weight (G)

Cross reference numbers ONLY.
NAMURA NX-10003, WOSSNER 8170DA, WISECO 859M05400 13110-KSR-730 / 13120-KSR-730 + 13111-KV3-000 / 13111-KZ4- 000 13111-KV3-000 + 13121-KSR-731 + 94601-15000
