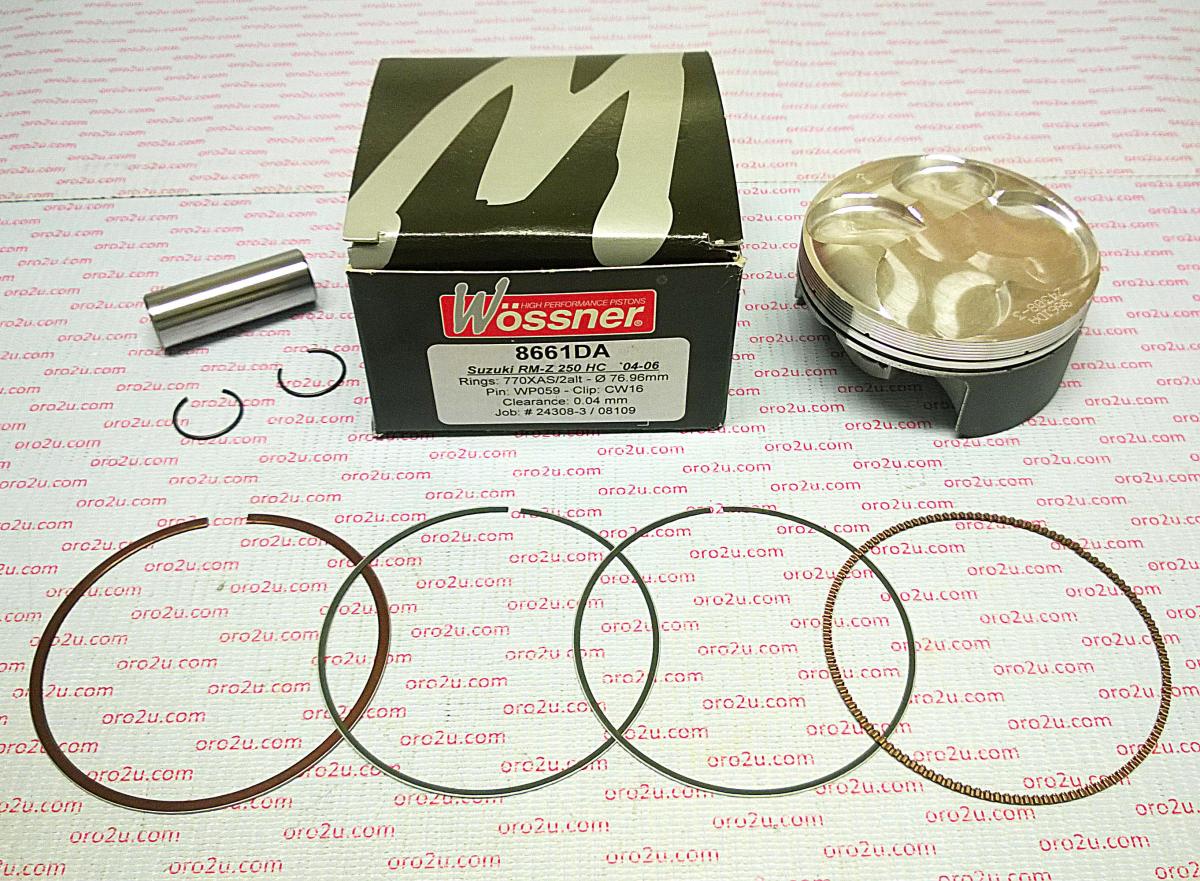

PISTON KIT 04-06 RMZ250 77 HC, FORGED WOSSNER 8661DA K1300-10052

Piston kit 77mm Bore 76.96 Wossner 8661DA (STD)

SUZUKI
RM-Z250 2004 - 2006,
(High compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W306.A.WO (oro2u.com)
Wossner Piston Suzuki RM-Z250 77 mm Bore (PN# 8661DA)
Compression Ratio 13.5:1
Lock P/N CW16
Pin P/N WP059
Ring Set P/N 770XAS-2
Rod P/N P4002

Display (cm3) 249
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: 13.20:1
OEM Compression ratio: 12.60:1
Dome volume (cm3) -4.00
Compression height (mm) 19.60
Theorectical weight (G)

Cross reference numbers ONLY.
K1300-10052, 4843M07700
