Wiseco Forged Piston Kit 94.00 mm 11.5:1 CR for Honda TRX450 R 2004–2005 4849M09400

Wiseco 4849M09400 is a piston kit for a 94.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4849M09400
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 94.00 MM
• Piston Diameter: 93.92 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 11.5:1

Included components

Ring Set #3701XR, Piston pin #S656, Circlip #CW21.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

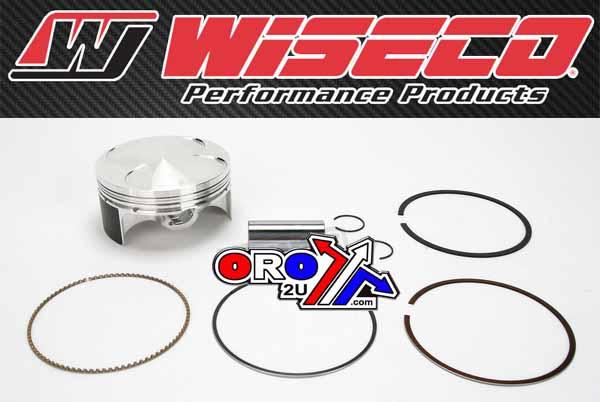

Manufacturer photograph for this reference. Packaging presentation may change.
