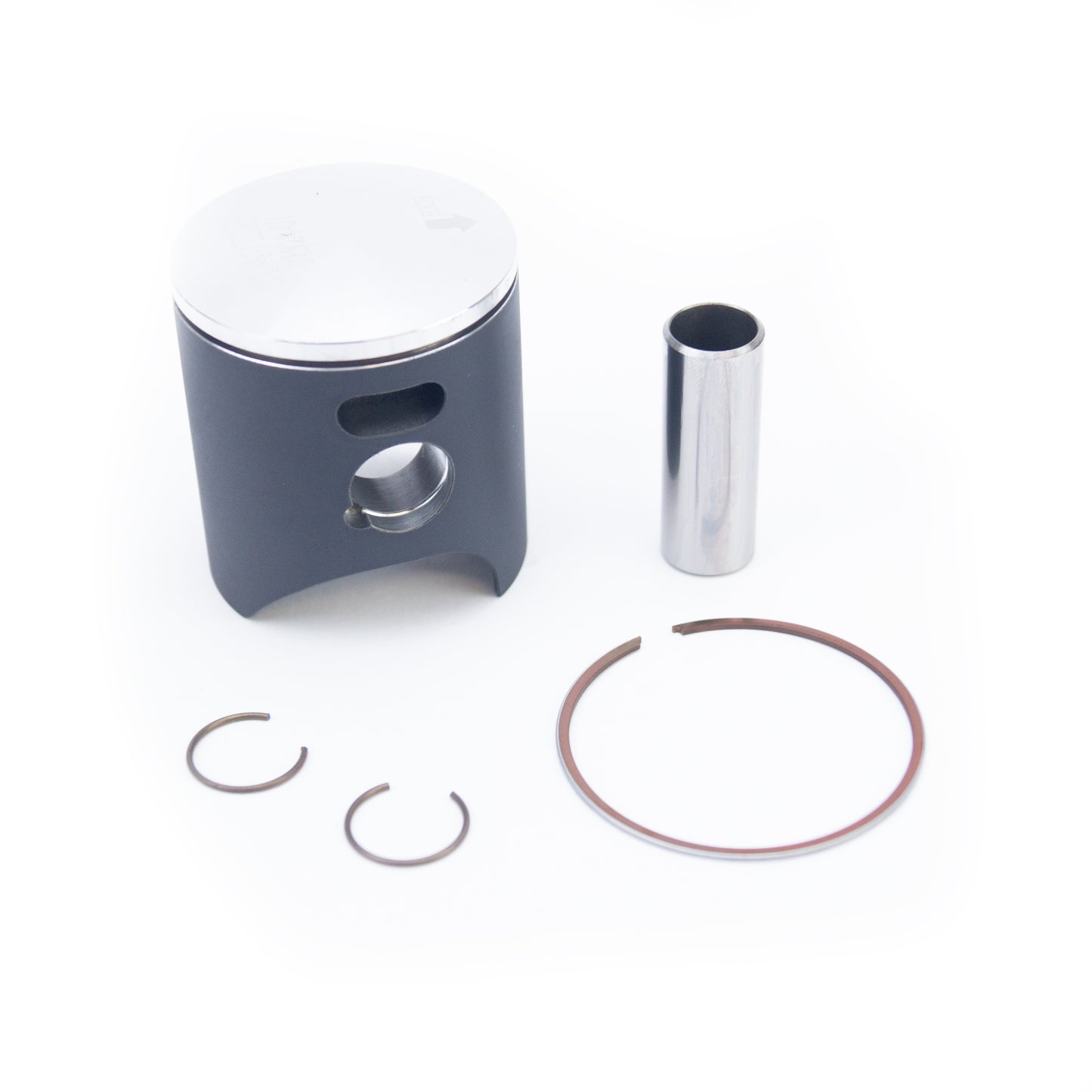

PISTON KIT 03-23 SX85 47.00 A, WOSSNER 8147DA FORGED KIT 50000260

Piston kit 47mm Bore 46.95 Wossner 8147DA (STD)

KTM
85 SX 2003-2023
Husqvarna
TC85 2016-2023
GASGAS
MC85 2021-2023

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W012.A.WO (oro2u.com)
Lock P/N CW14,
Pin P/N WP058,
Ring Set P/N RSV4700
Rod P/N P2065 2014 -,
Needle bearing - N1006,
Main bearing - 2 x MB6304C3

Display (cm3) 84
Hub stroke (mm) 48.95
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 24.00

Cross reference numbers ONLY.
50000260, 855M04700

Cross reference numbers ONLY. 47030007100 I / 47030007100 II ,
