Wiseco Forged Piston Kit 65.50 mm 11:1 CR for Honda CRF230 F 2003–2019 4816M06550

Wiseco 4816M06550 is a piston kit for a 65.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4816M06550
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 65.50 MM
• Piston Diameter: 65.45 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 11:1

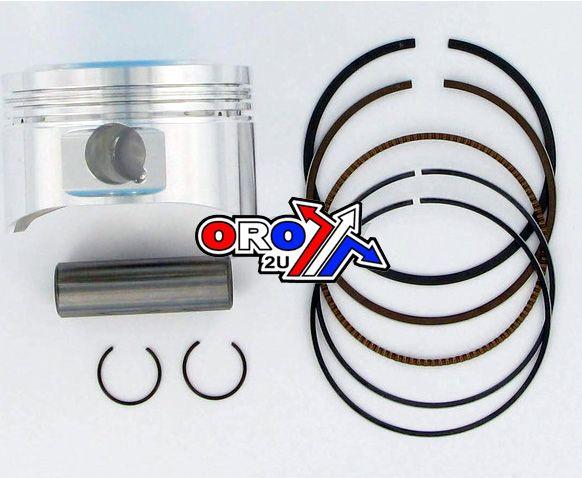

Included components

Ring Set #25787XA, Piston pin #S632, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Manufacturer photograph for this reference. Packaging presentation may change.
