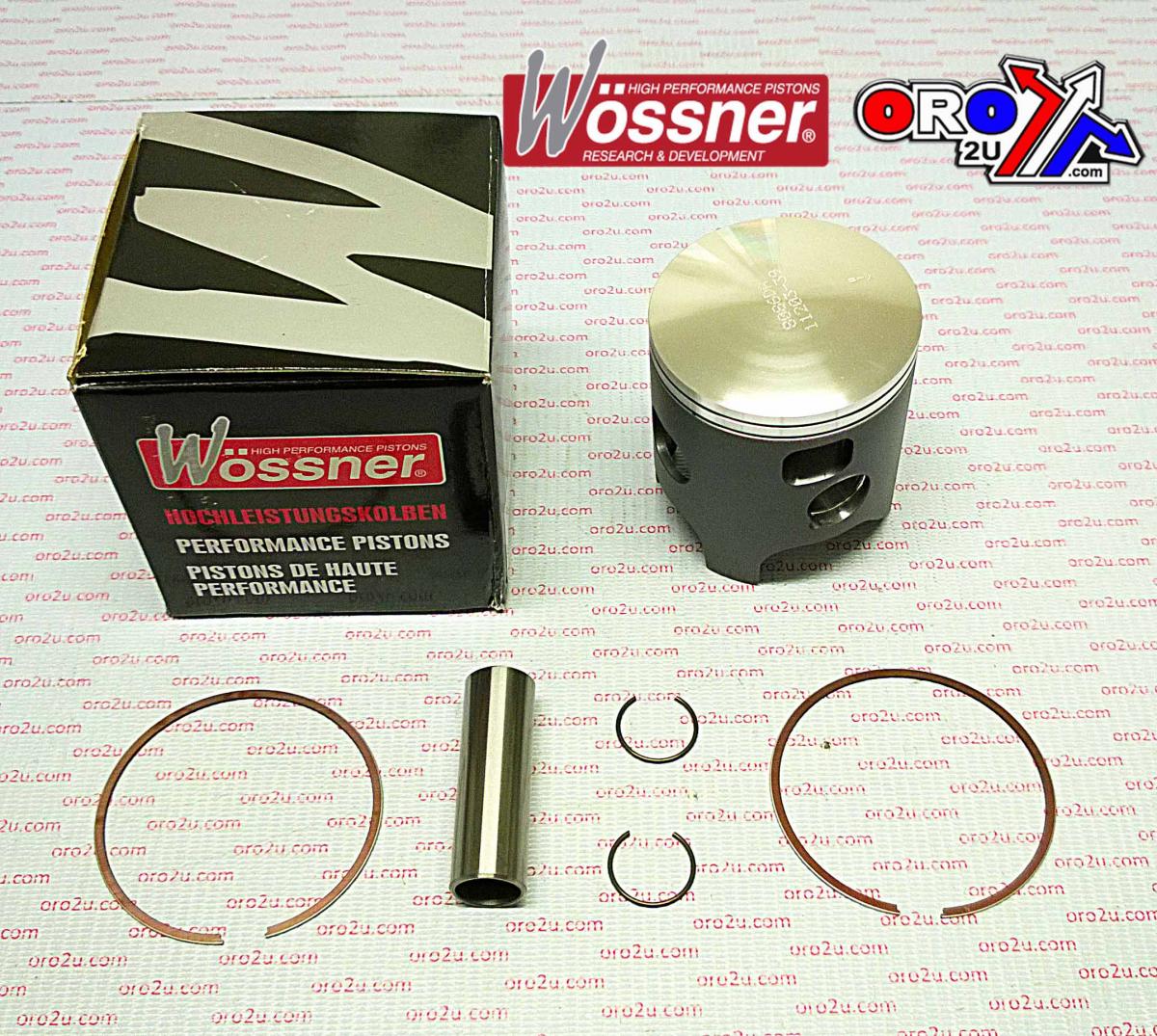

PISTON KIT 03-09 RM250 66.40 C, WOSSNER 8086DC 2-RING SUZUKI

Piston Kit 66.42mm Bore 66.36 Wossner 8086DC (+0.02)

SUZUKI
RM250 2003 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W823.C.WO (oro2u.com)
Wossner Piston Suzuki RM250 66.4 mm Bore (PN# 8086DC)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 x2
Rod P/N P2025

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)
