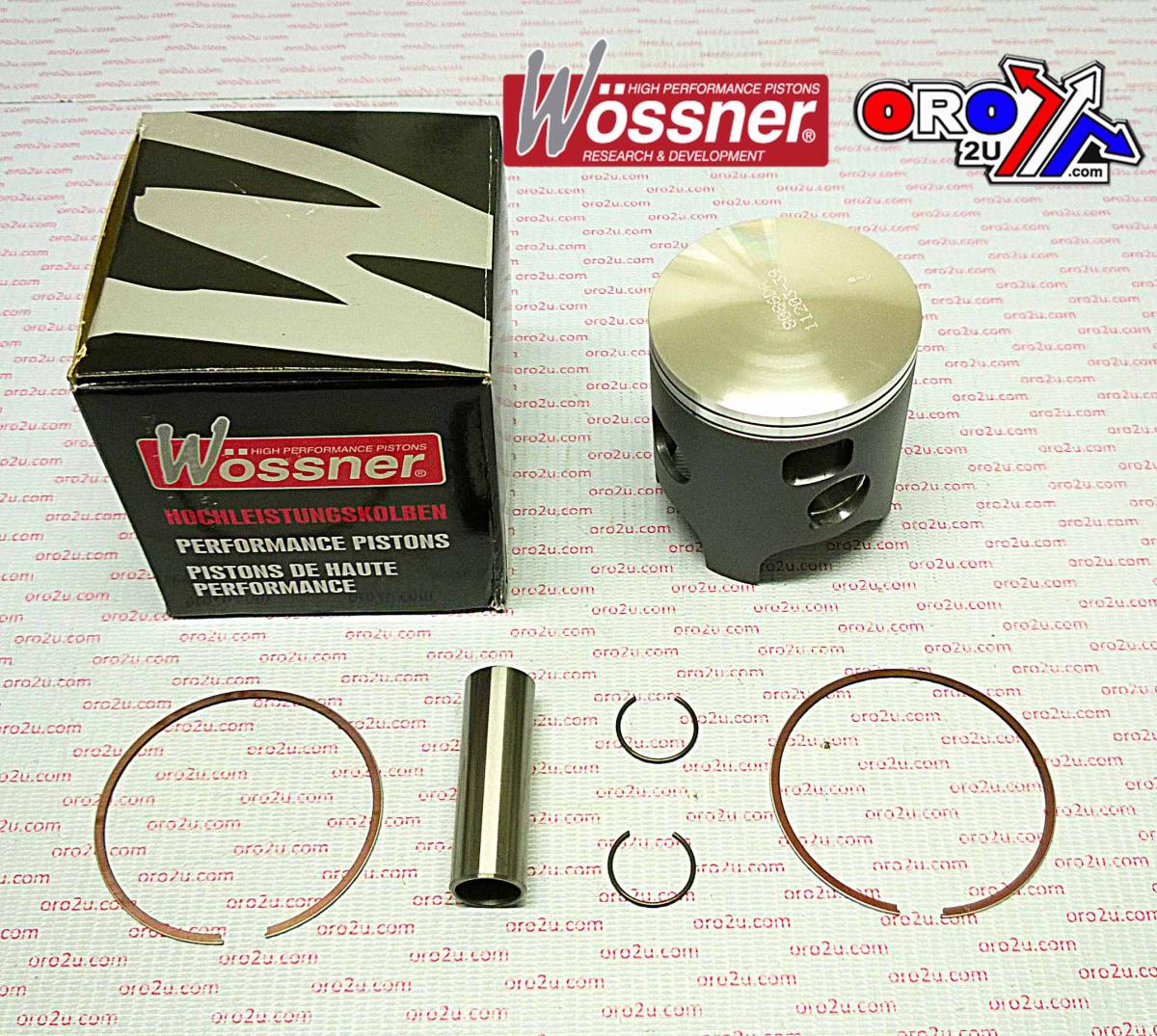

PISTON KIT 03-09 RM250 66.40 B, WOSSNER 8086DB 2-RING SUZUKI

Piston Kit 66.41mm Bore 66.35 Wossner 8086DB (+0.01)

SUZUKI
RM250 2003 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W823.B.WO (oro2u.com)
Wossner Piston Suzuki RM250 66.41 mm Bore (PN# 8086DB)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 x 2
Rod P/N P2025

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

- 2003 Suzuki RM 250 - 2004 Suzuki RM 250 - 2005 Suzuki RM 250 - 2006 Suzuki RM 250 - 2007 Suzuki RM 250 - 2008 Suzuki RM 250

- 2009 Suzuki RM 250
Cross reference numbers ONLY. [ 12110-37F20-0F0 / 12110-37F30-0F0 + 12141-37E02 + 12151- 37F00 / 12151-28C00 / 12151-37F00 + 09381-18002 ]
