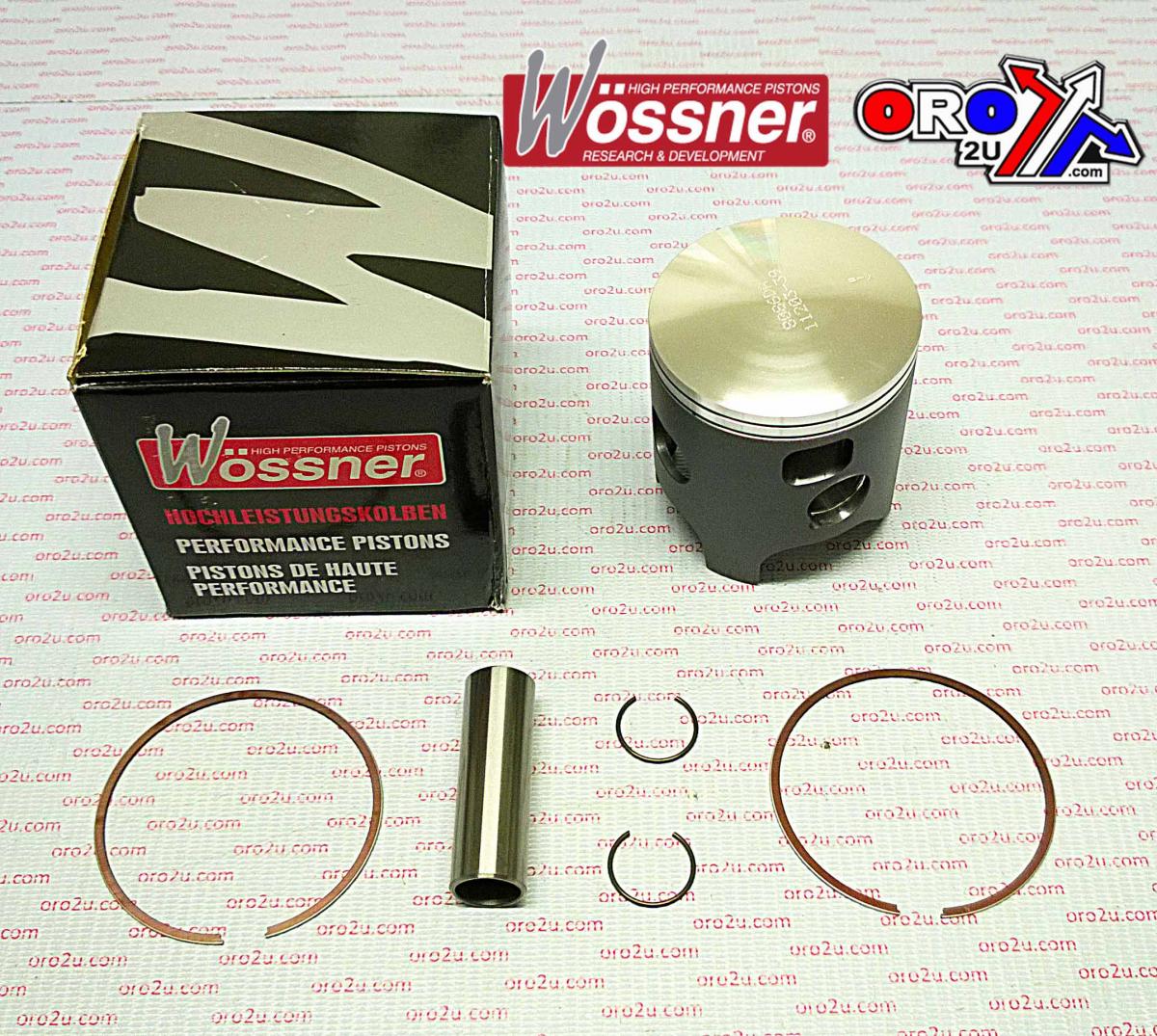

PISTON KIT 03-09 RM250 66.40 A, WOSSNER 8086DA 2-RING SUZUKI 12110-37E42-0F0

Piston Kit 66.40mm Bore 66.34 Wossner 8086DA (STD)

SUZUKI
RM250 2003 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W823.A.WO (oro2u.com)
Wossner Piston Suzuki RM250 66.4 mm Bore (PN# 8086DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 x 2
Rod P/N P2025

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
12110-37E42-0F0, 823M06640

- 2003 Suzuki RM 250 - 2004 Suzuki RM 250 - 2005 Suzuki RM 250 - 2006 Suzuki RM 250 - 2007 Suzuki RM 250 - 2008 Suzuki RM 250

- 2009 Suzuki RM 250
