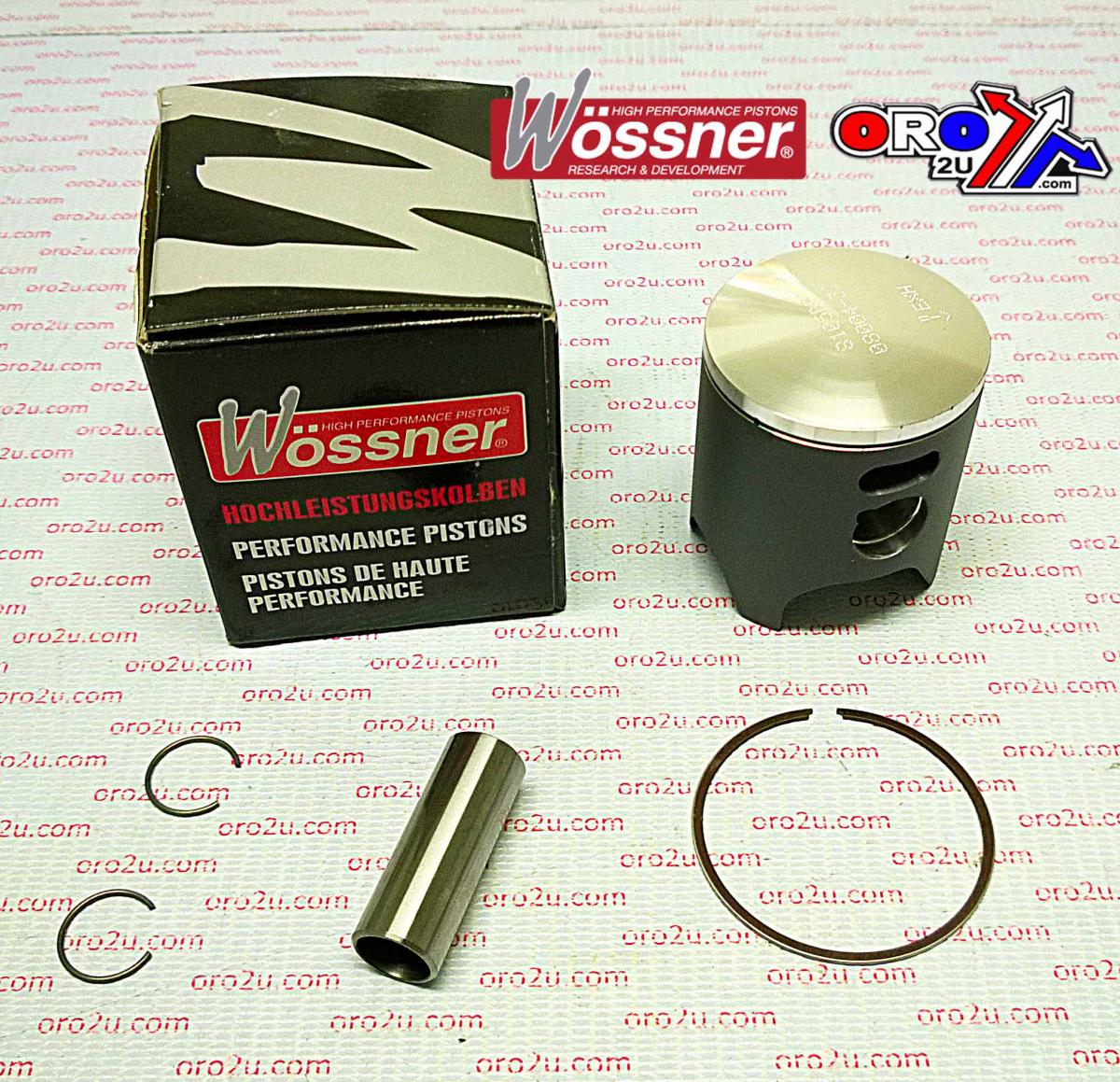

PISTON KIT 03-09 CR85 47.50 A, WOSSNER 8105DA HONDA MX

Piston Kit 47.50mm Bore 47.45 Wossner 8105DA (STD)

HONDA
CR85 2003 - 2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W833.A.WO (oro2u.com)

Wossner Piston Honda CR85 47.5 mm Bore (PN# 8105DA)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB4750
Rod P/N P2003

Display (cm3) 84
Hub stroke (mm) 47.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 24.00
Theorectical weight (G)

Cross reference numbers ONLY.
8105DA,
PIN, PISTON 13111-GC4-600
PISTON B 13120-GBF-B40
RING, PISTON TOP 13121-GBF-B41

- 2003 Honda CR 85 - 2004 Honda CR 85 - 2005 Honda CR 85 - 2006 Honda CR 85 - 2007 Honda CR 85 - 2008 Honda CR 85

- 2009 Honda CR 85
