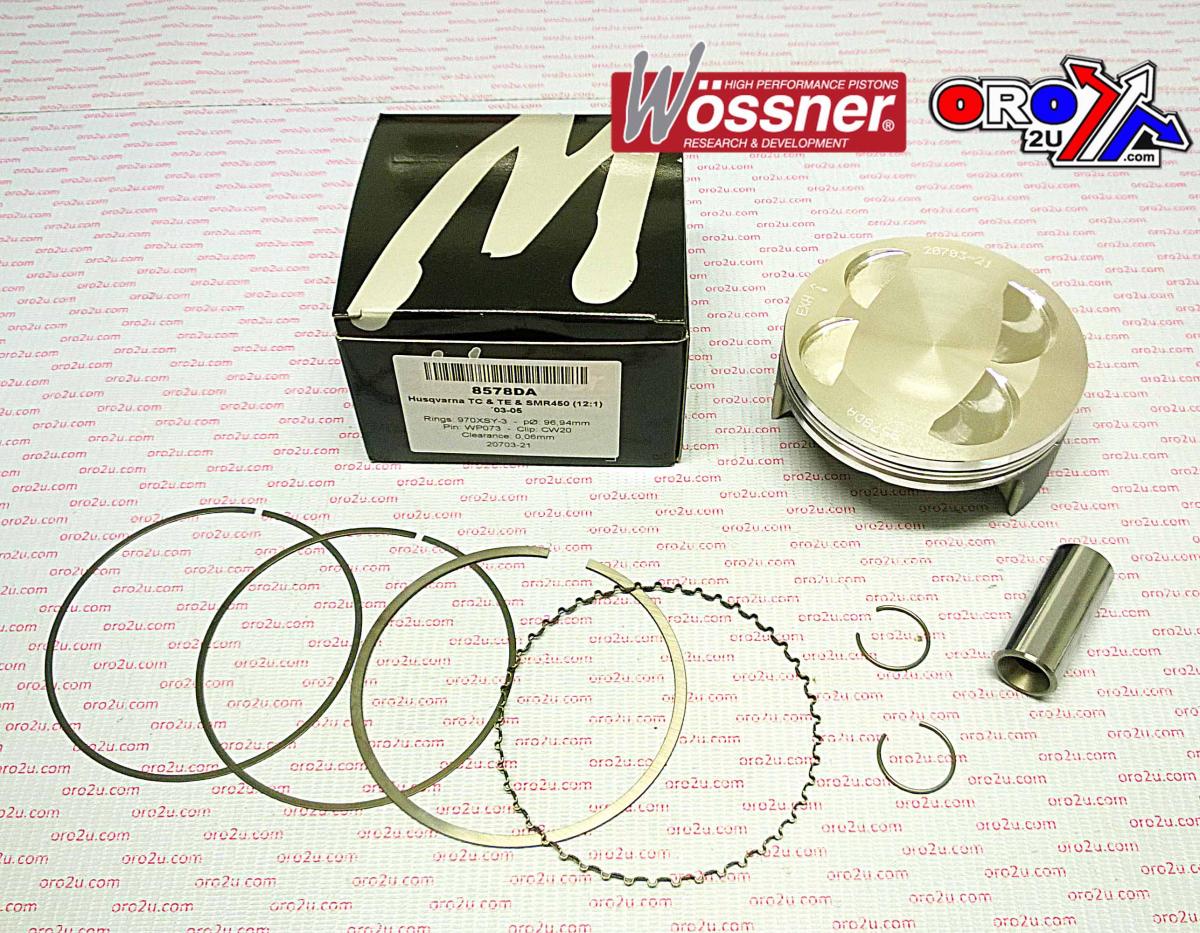

PISTON KIT 03-05 HUS 450 97.00, 8578DB WOSSNER HUSQVARNA

Piston kit 97.01mm BORE 96.95 WOSSNER 8578DB (+0.01MM)

Husqvarna
TC450 2003 - 2005,
TE450 2003 - 2005,
SMR450 2003 - 2005,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W023.B (oro2u.com)
Lock P/N CW20
Pin P/N WP073
Ring Set P/N 970XSY

Display (cm3) 449
Hub stroke (mm) 60.80
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -6.50
Compression height (mm) 24.50
