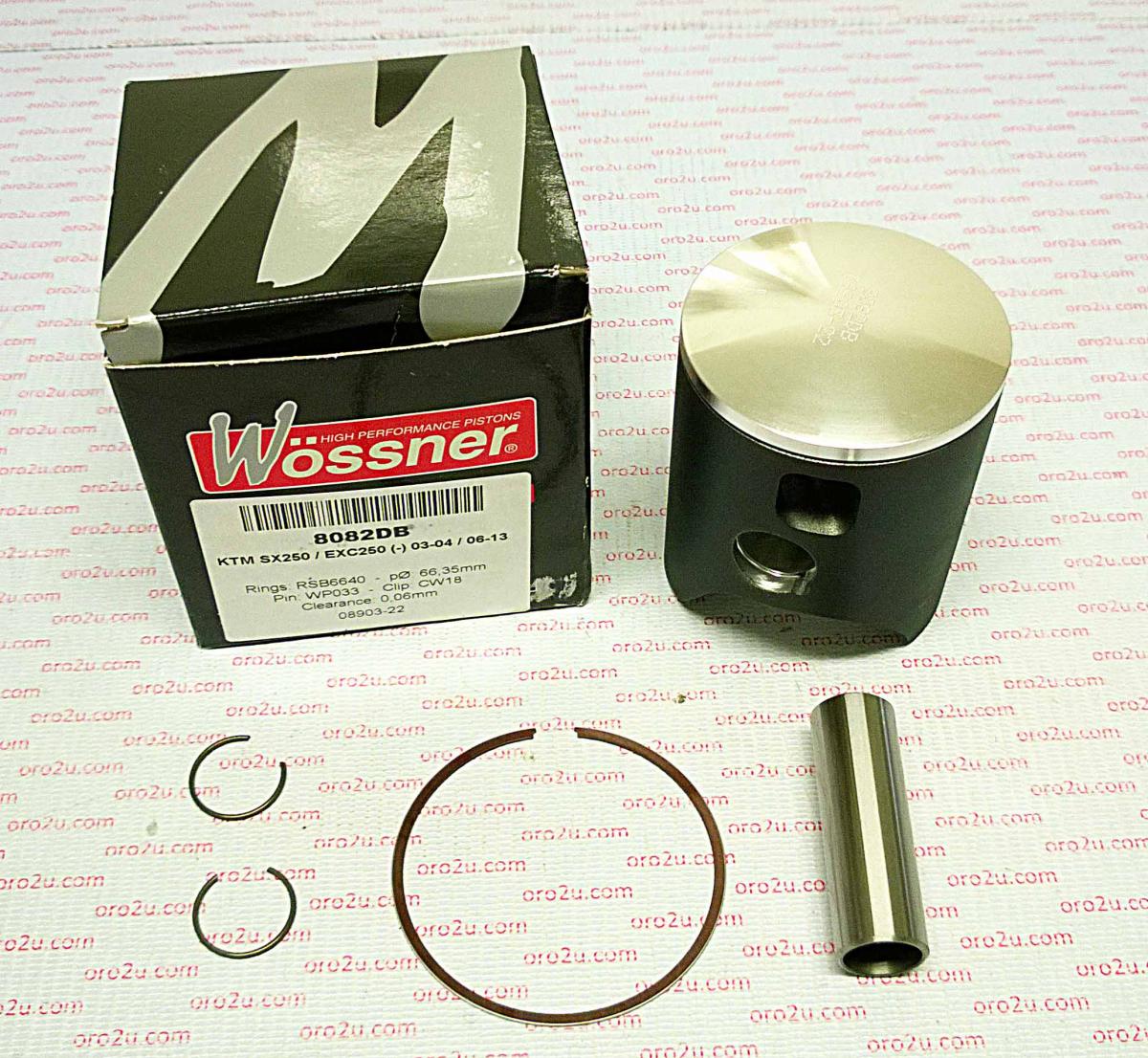

PISTON KIT 03-04 KTM250 66.40, WOSSNER 8082DB FORGED MX

KTM
SX 250 2003 - 2004,
EXC 250 2006 - 2018,
Gas-Gas
EC 250 1997 - 2014,
Husaberg
TE 250 2013 - 2014,
Husqvarna
TC 250 2014 - 2018,
TE 250 2014 - 2018,
TE 250i 2018,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W824.B.WO (phoenixmotos.com)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640
Rod P/N P2023

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)
