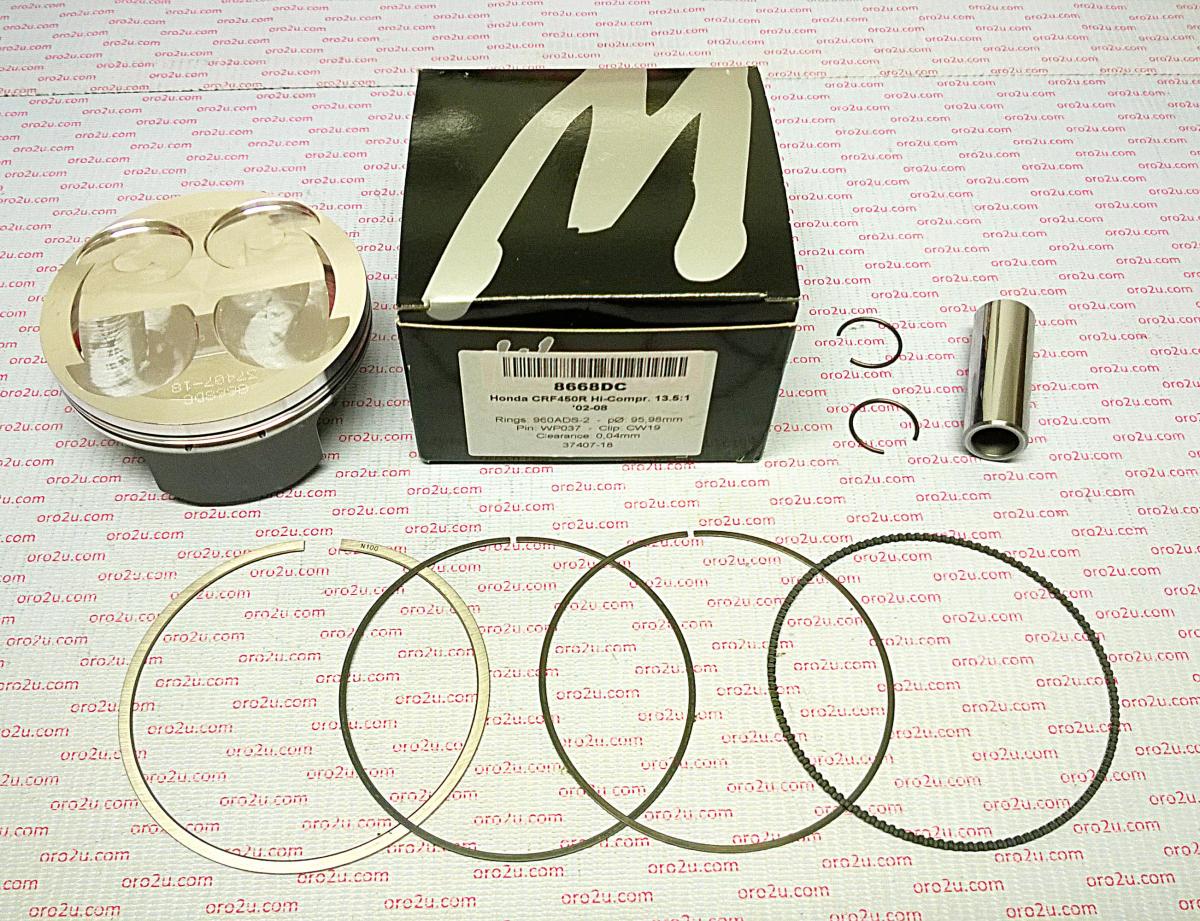

PISTON KIT 02-08 CRF450R HC 96, FORGED WOSSNER 8668DC

Piston kit 96.02mm Bore 95.98 Wossner 8668DC (+0.02)

HONDA
CRF450R 2002 - 2003,
(HIGH COMPRESSION 2 -RINGS)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

PART NO. 56-W4822.C.WO (oro2u.com)
Wossner Piston Honda CRF450R 96.02 mm Bore (PN# 8668DC)
Gasket P/N D4006 / D4007
Lock P/N CW19
Pin P/NW P037
Ring Set P/N 960ADS
Rod P/N P4026 / P4026

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) +3.50
Compression height (mm) 24.00
Theorectical weight (G)
