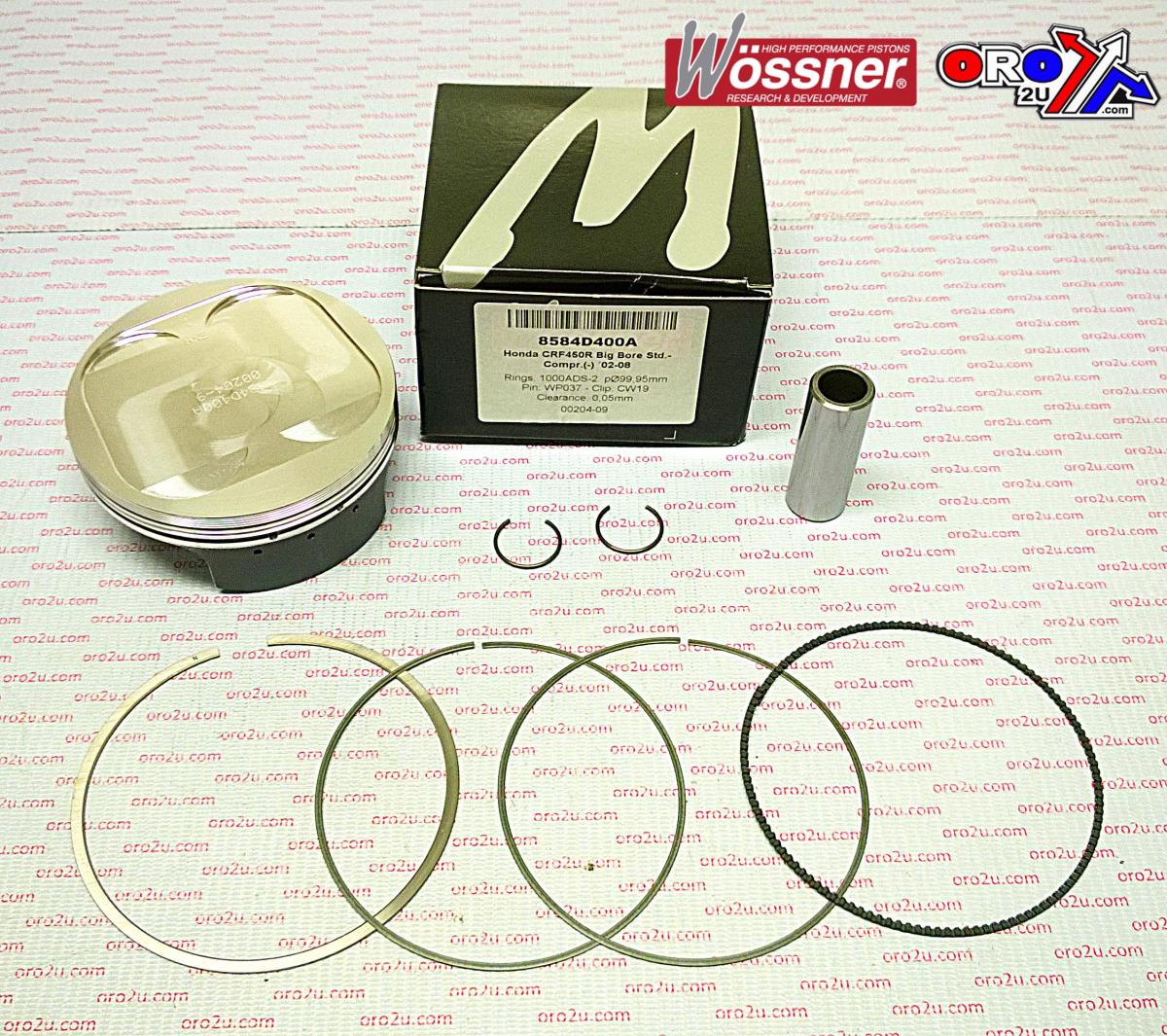

PISTON KIT 02-08 CRF450 100mm, WOSSNER 8584D400A BIG BORE

Piston kit 100mm Bore 99.96 Wossner 8584D400A (STD)

HONDA
CRF450R 2002 - 2008 big bore,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W205.A.WO (oro2u.com)
Wossner Piston Honda CRF450R 100.01 mm Bore (PN# 8584D400A)
Gasket P/N D4006 / D4007
Lock P/N CW19
Pin P/N WP037
Ring Set P/N 1000ADS-2
Rod P/N P4026

Display (cm3)449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: 11.80:1
OEM Compression ratio: 11.50:1
Dome volume (cm3) -6.50
Compression height (mm) 24.00
Theorectical weight (G)
