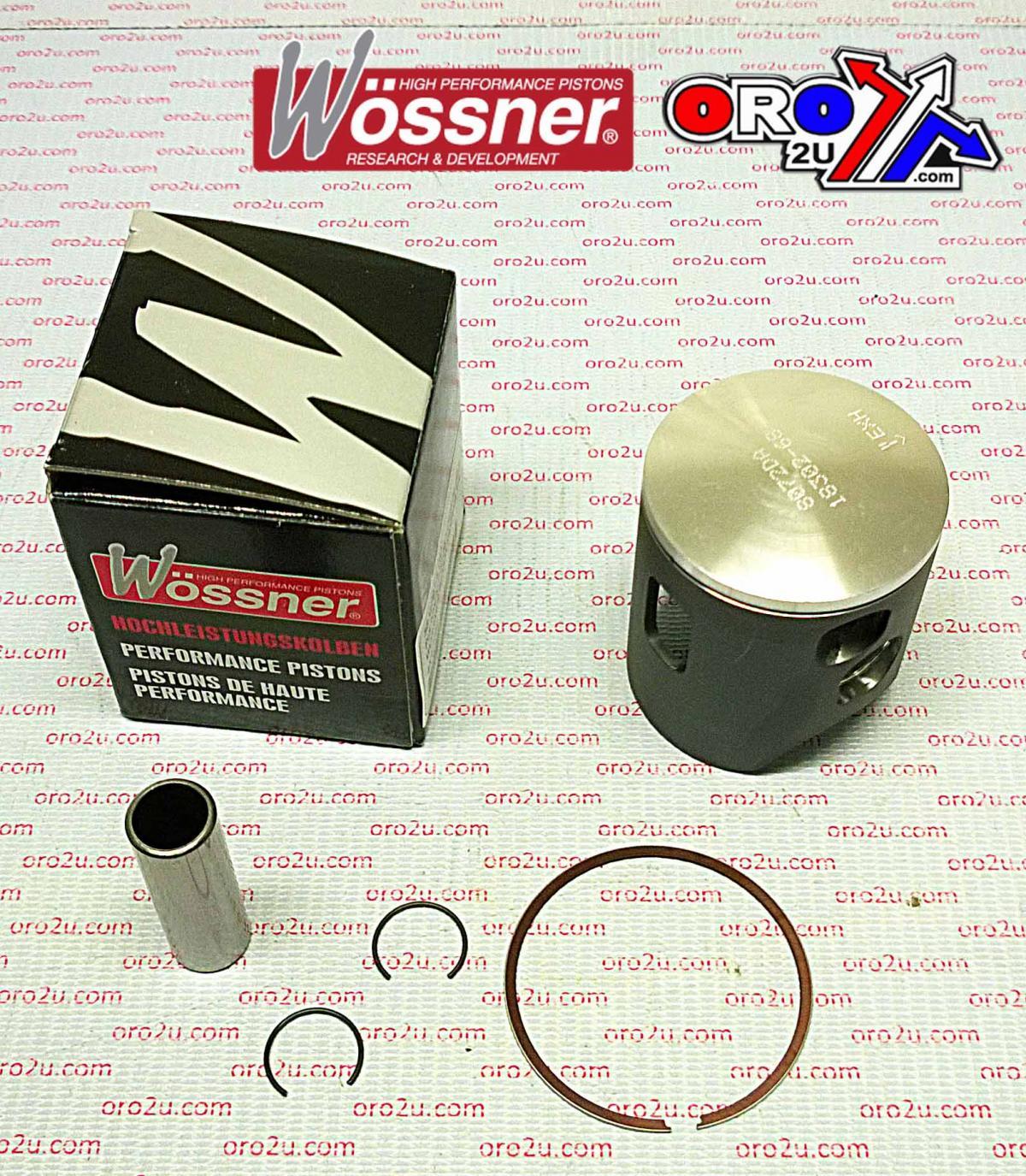

PISTON KIT 02-04 YZ125 54.00 B, WOSSNER 8072DB YAMAHA MX

YAMAHA
YZ125 2002-2004,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W797.B.WO (phoenixmotos.com)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2017

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

Cross reference numbers ONLY.
Piston (Std) UR 5NY-11631-01-D0
Piston (Std) UR 5NY-11631-01-C0
Piston (Std) UR 5NY-11631-01-B0
Piston (Std) UR 5NY-11631-01-A0
Ring, 5NY-11611-00-00
Pin, 5UN-11633-00-00
Circlip 93450-16068-00
