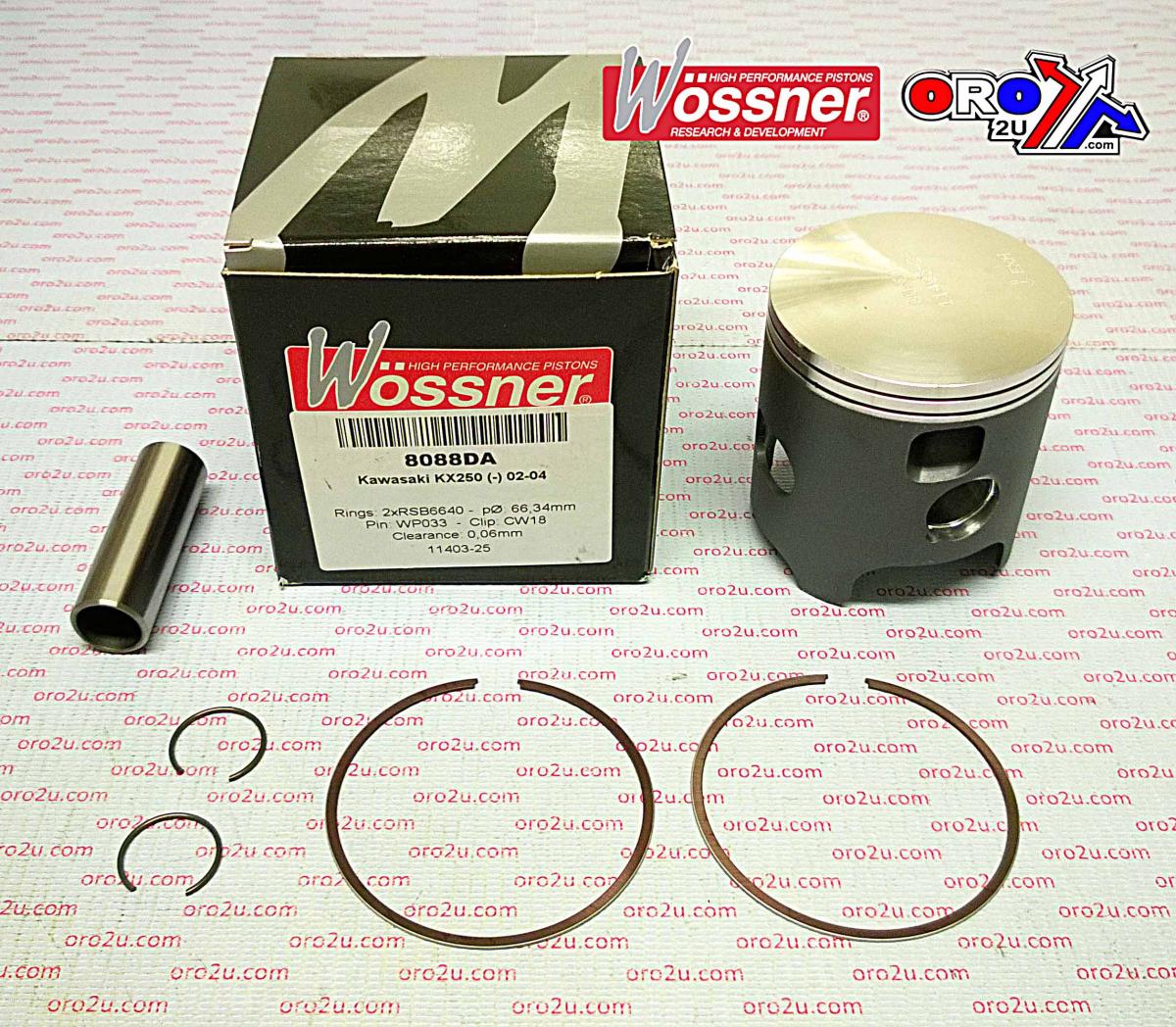

PISTON KIT 02-04 KX250 66.40 A, WOSSNER 8088DA KAWASAKI MX 13001-0013

Piston Kit 66.40mm Bore 66.34 Wossner 8088DA (STD)

KAWASAKI
KX250 2002 - 2004,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W799.A.WO (oro2u.com)
Wossner Piston Kawasaki KX250 66.4 mm Bore (PN# 8088DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 X 2
Rod P/N P2022

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.00
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0013, 09104809, 799M06640

Select your car to see if this product fits:- 2002 Kawasaki KX 250 - 2003 Kawasaki KX 250 - 2004 Kawasaki KX 250
