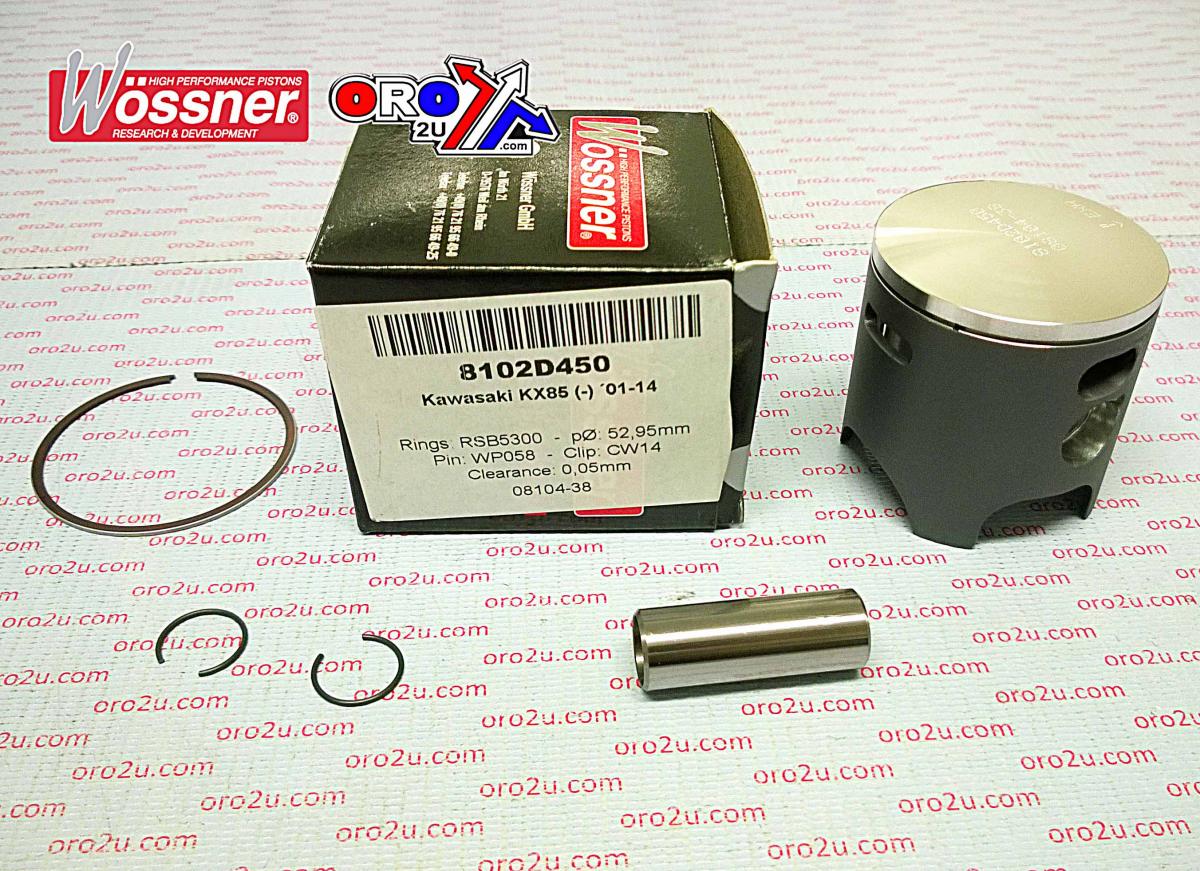

PISTON KIT 01-20 KX85 48.50 A, WOSSNER 8102DA KAWASAKI MX 13001-0006

Piston kit 48.50mm Bore 48.45 Wossner 8102DA (STD)

Kawasaki
KX85 2001-2016,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W782.A.WO (oro2u.com)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB4850
Rod P/N P2005

Display (cm3) 85
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.00
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0006, 09104826, 879M04850
