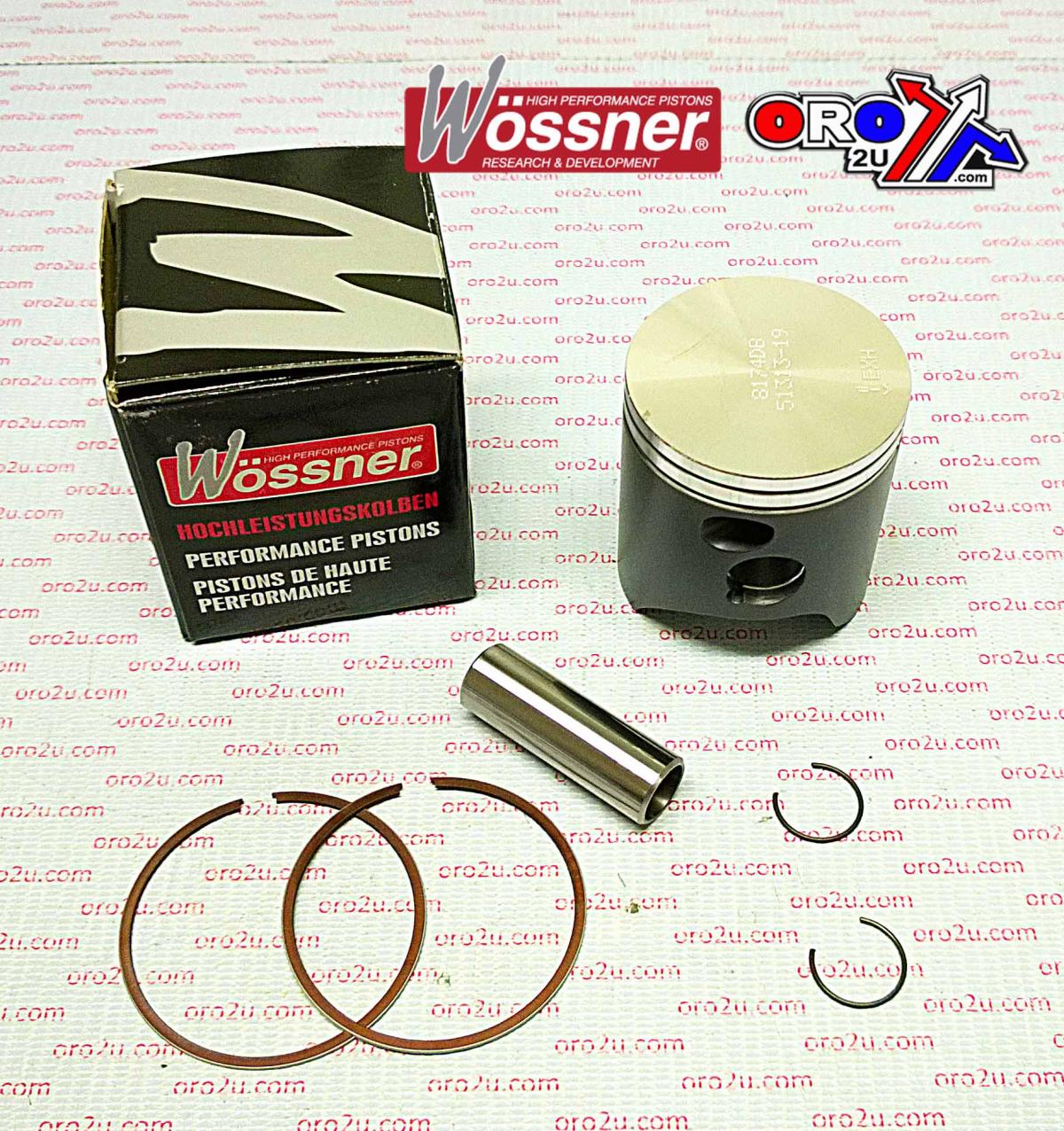

PISTON KIT 01-15 KTM125, BETA RR 125 18-19 54.00, WOSSNER 8174DC EXC

Piston kit 54.02mm Bore 53.97 Wossner 8174DC (+0.02)

KTM
EXC 125 2001 - 2015,
BETA
RR 125 2018 - 2019,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W213.C.WO (oro2u.com)
Wossner Piston KTM EXC125 54 mm Bore (PN# 8174DC)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSV5400 x 2
Rod P/N P2011

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
