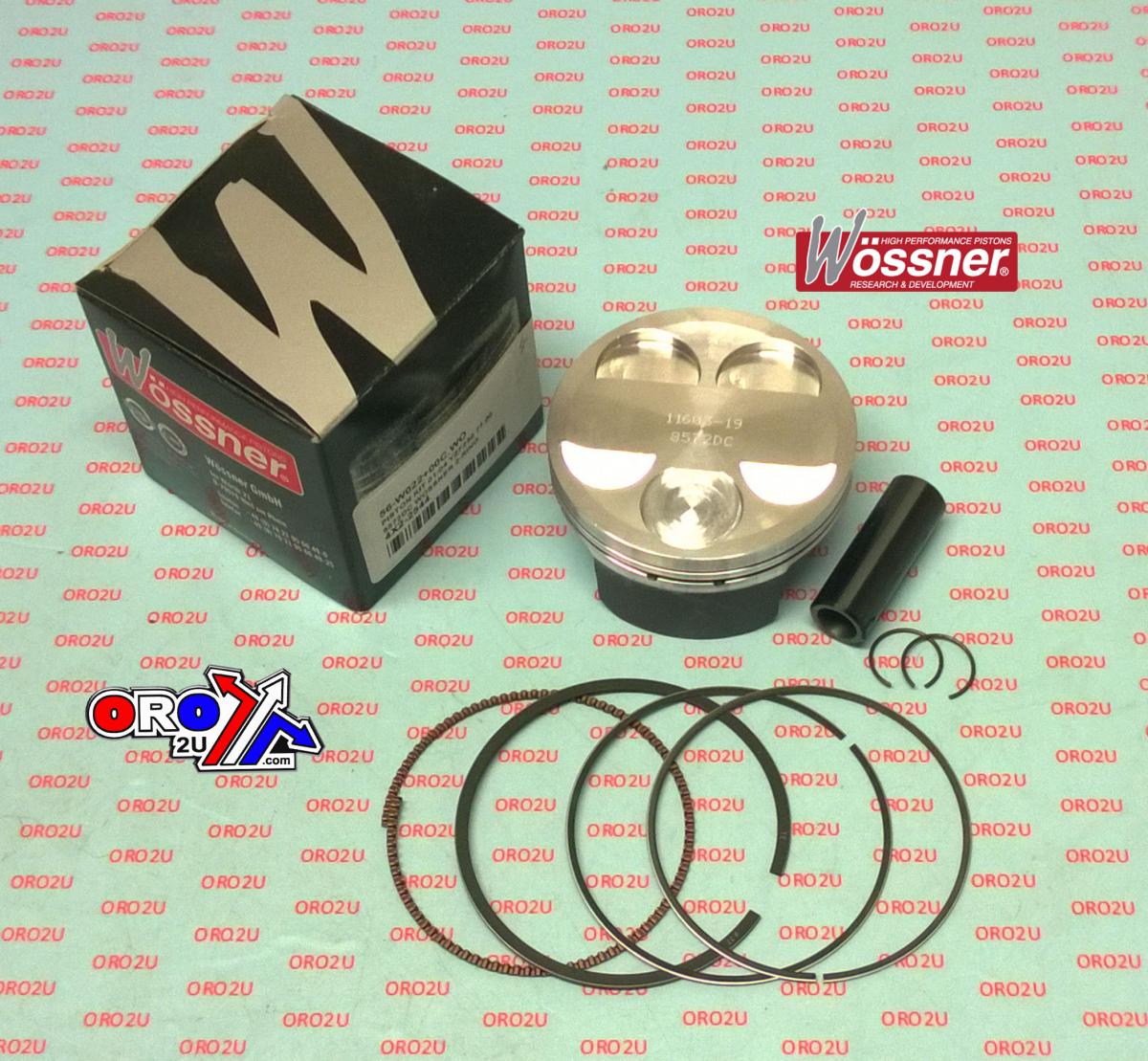

PISTON KIT 01-04 YZF250 83.00, 8572D600 WOSSNER BIG BORE

Piston kit 83mm Bore 82.96 WOSSNER 8572D600 (+6.00)

Yamaha
YZF250 2001 - 2004,
WR250F 2001 - 2004,
(2 Ring) Pro series

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W022+600.WO (oro2u.com)
Lock P/N CW16
Pin P/N WP059
Ring Set P/N 830XSY
Rod P/N P4006 / P4005

Display (cm3) 249
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: 12.80:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -4.8
Compression height (mm) 20.50

S/SEED FROM 56-K103_PISTON TO 56-W022+600.WO
