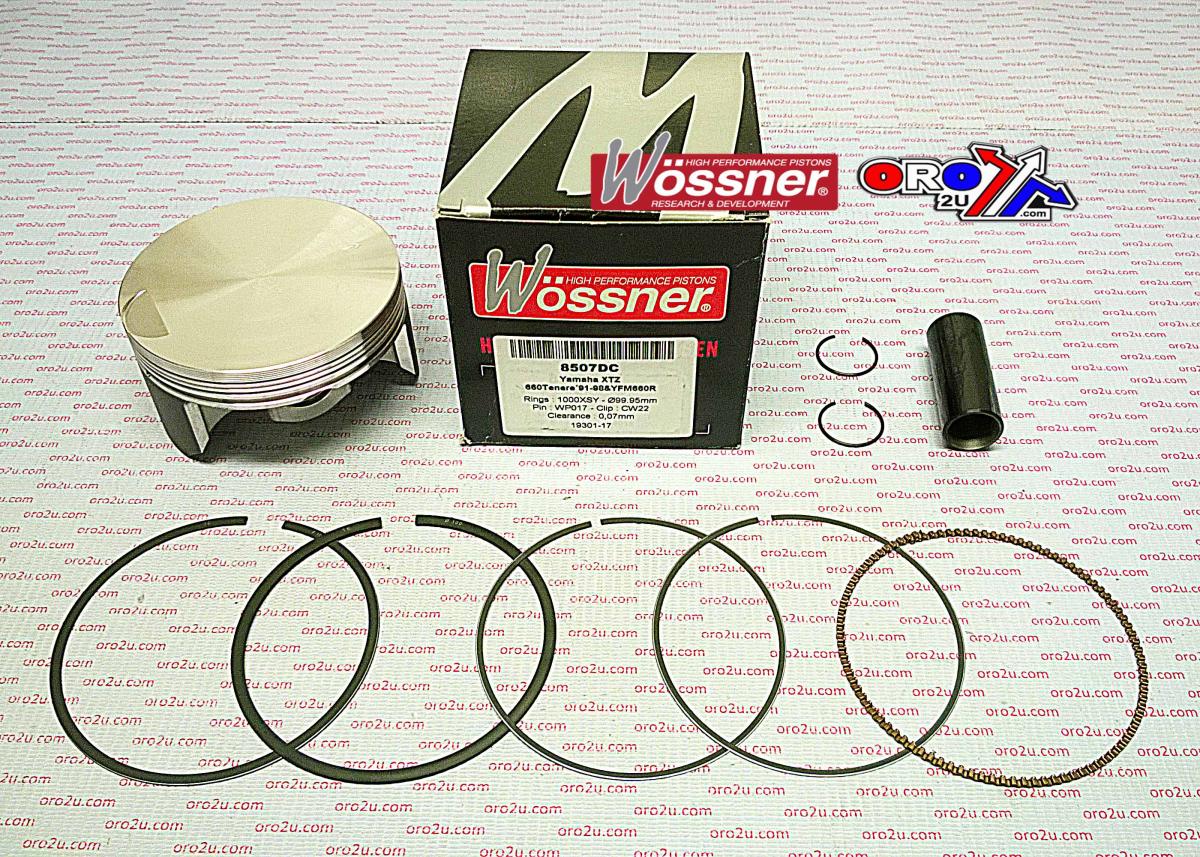

PISTON KIT 01-04 YFM660 101.00, WOSSNER 8507D100 YAMAHA ATV

YAMAHA
XTZ660 Tenere 1991 - 1998,
XTZ660 Raptor 1991 - 1998,

ATV
YAMAHA
YFM660R Raptor 2001 - 2009,
YFM660F Grizzly 2001 - 2009,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W8507+100.WO (phoenixmotos.com)
Wossner Piston Yamaha XTZ660 101 mm Bore (PN# 8507D100)
Lock P/N CW22
Pin P/N WP017
Ring Set P/N 1010XSY

Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.07
Wossner compression Ratio: OEM
OEM Compression ratio: 9.20:1
Dome volume (cm3) -0.30
Compression height (mm) 27.00
Theorectical weight (G)
