PISTON KIT 01-02 KX125 54.00 B, WOSSNER 8062DB KAWASAKI MX

KAWASAKI
KX125 2001 - 2002,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W783+00B.WO (phoenixmotos.com)

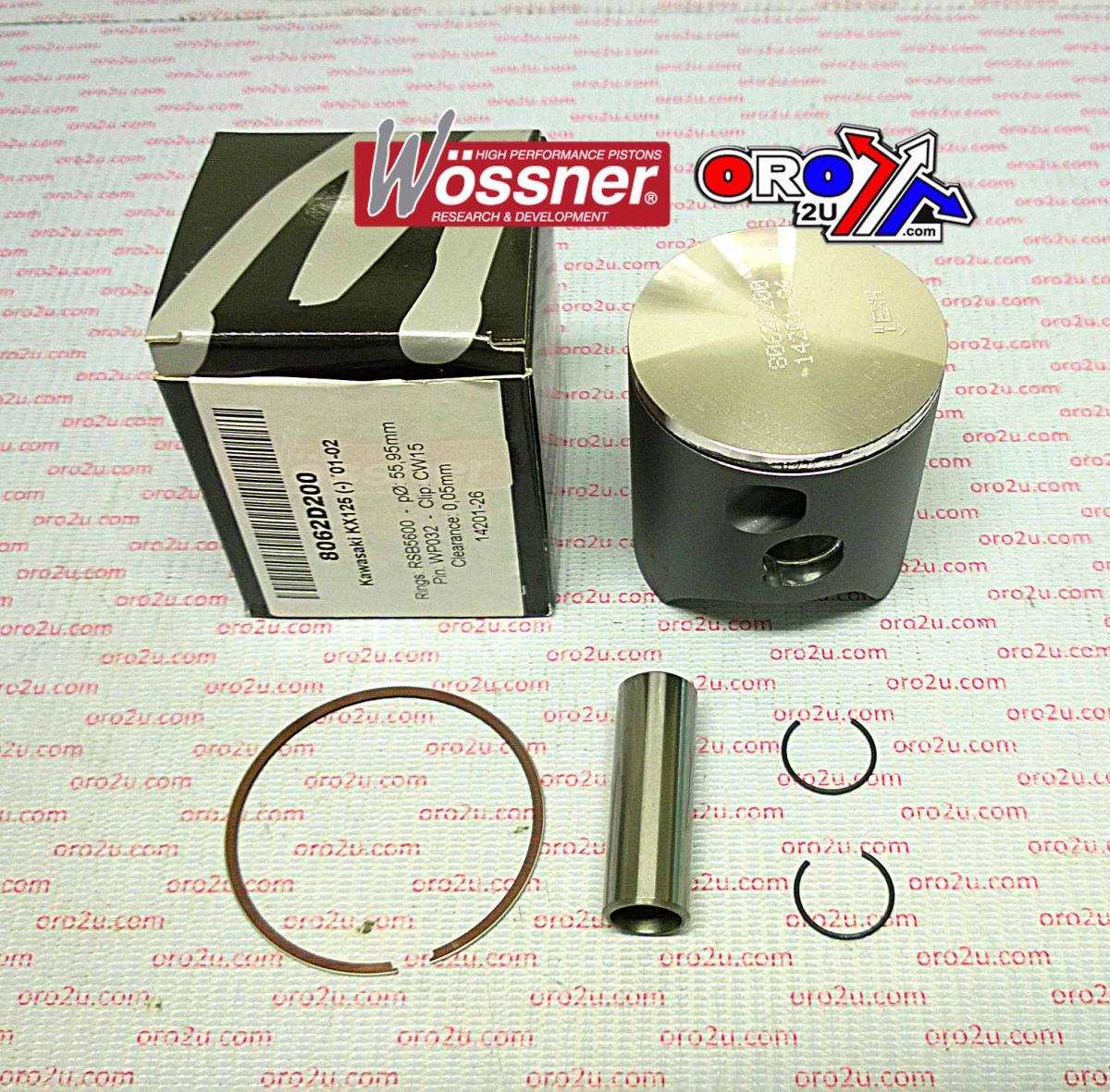

Wossner Piston Kawasaki KX125 54.01 mm Bore (PN# 8062DB)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2034

Display (cm3) 125
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.00
Theorectical weight (G)

Product Fitment
Select your car to see if this product fits:
- 2001 Kawasaki KX 125 - 2002 Kawasaki KX 125
