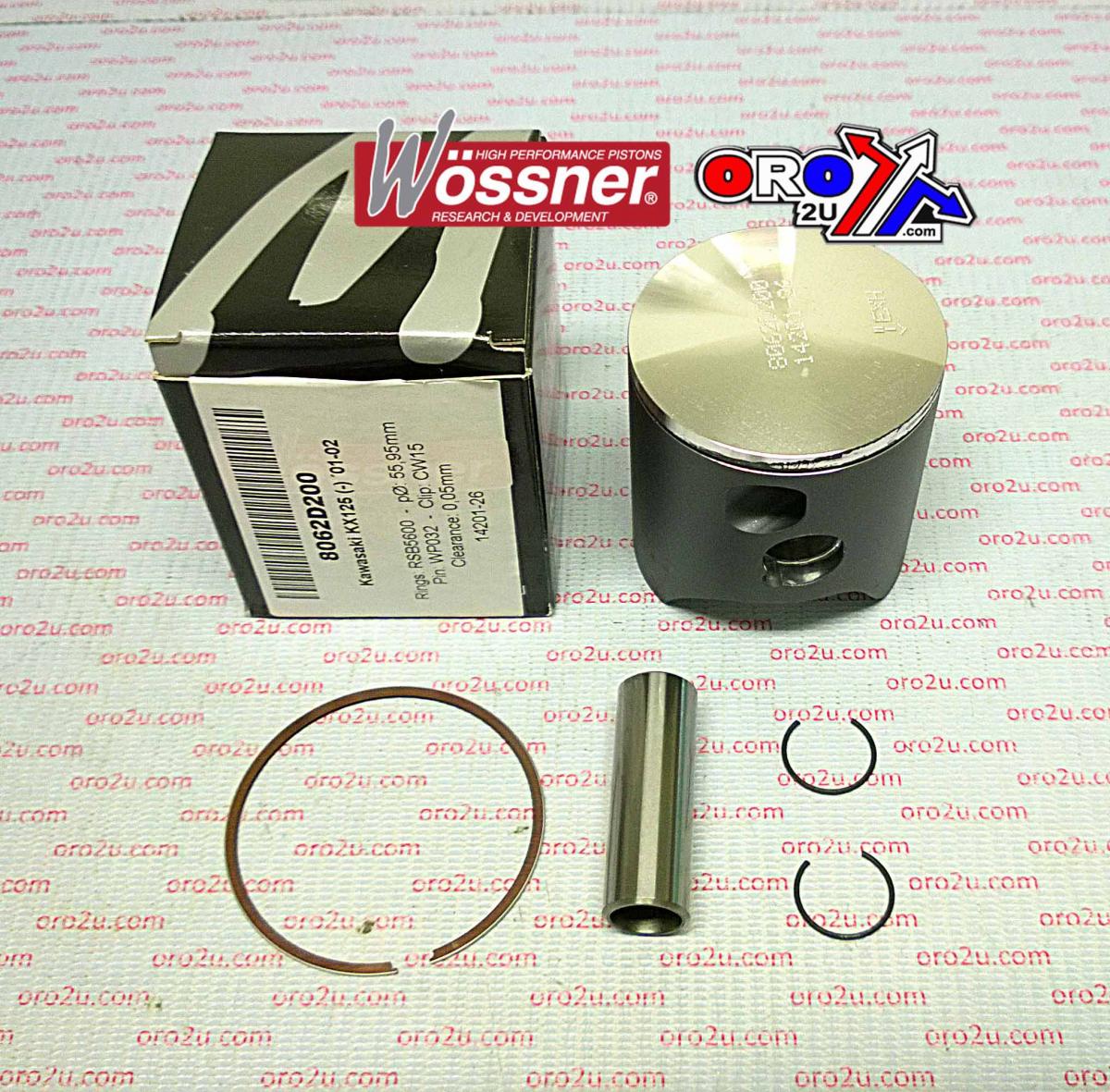

PISTON KIT 01-02 KX125 54.00 A, WOSSNER 8062DA 13001-1642

KAWASAKI
KX125 2001 - 2002,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W783+00.A.WO (phoenixmotos.com)
Wossner Piston KAWASAKI KX 125 54mm Bore (PN# 8062DA)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400

Display (cm3) 125
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.00
Theorectical weight (G)

Cross reference numbers ONLY.
13001-1642, 783M05400
