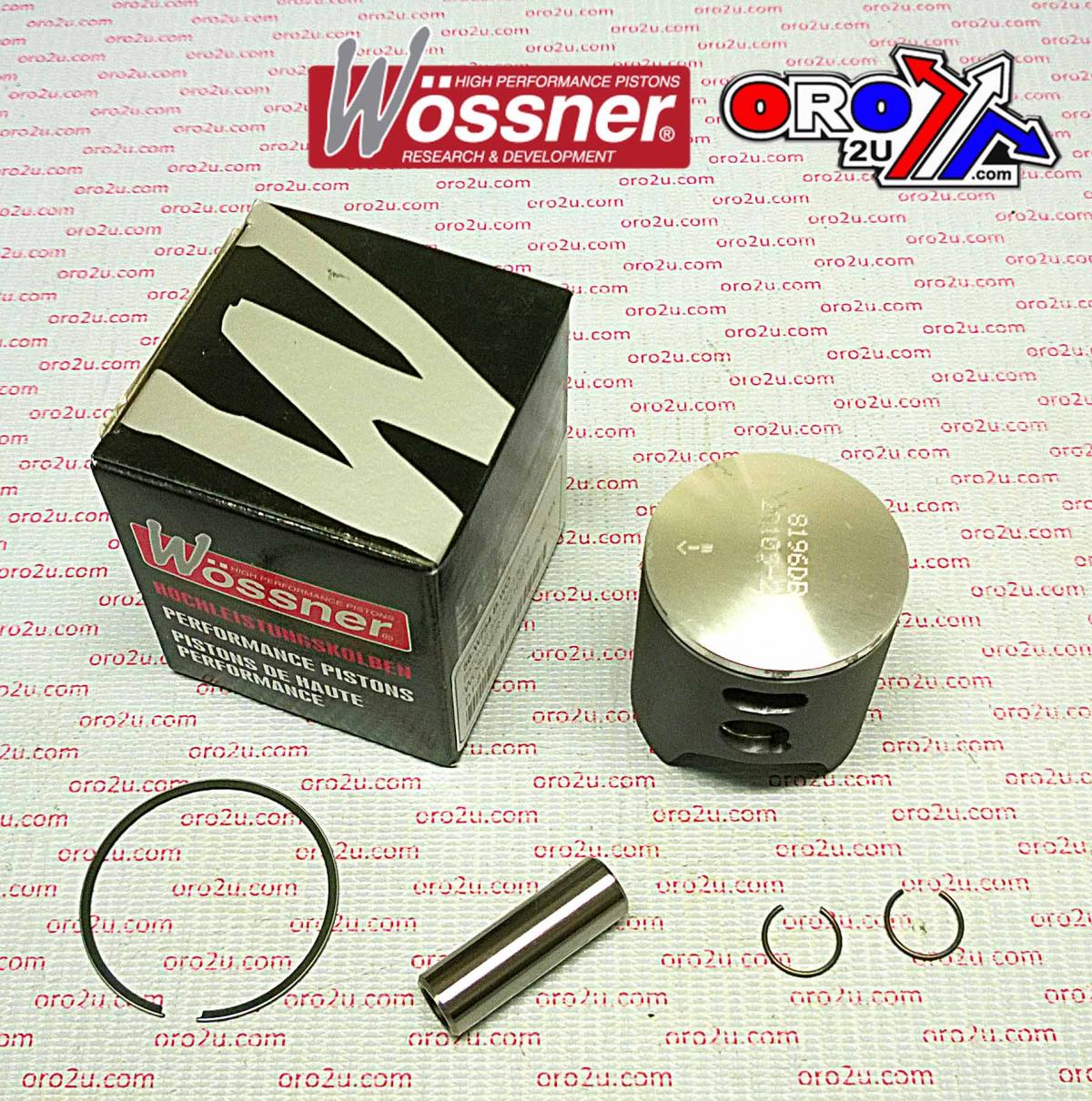

PISTON KIT 00-20 KX65 44.50 A, WOSSNER 8196DA KAWASAKI MX 13001-1630

Piston kit 44.50mm Bore 44.45 Wossner 8196DA (STD)

KAWASAKI
KX65 2000 - 2020,
SUZUKI
RM65 2000 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W752.A.WO (oro2u.com)
Wossner Piston Kawasaki KX65 44.5 mm Bore (PN# 8196DA)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB4450
Rod P/N P2001

Display (cm3) 65
Hub stroke (mm) 41.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 23.60
Theorectical weight (G)

Cross reference numbers ONLY.
13001-1630, 09104873, 752M04450, 11300-03852
