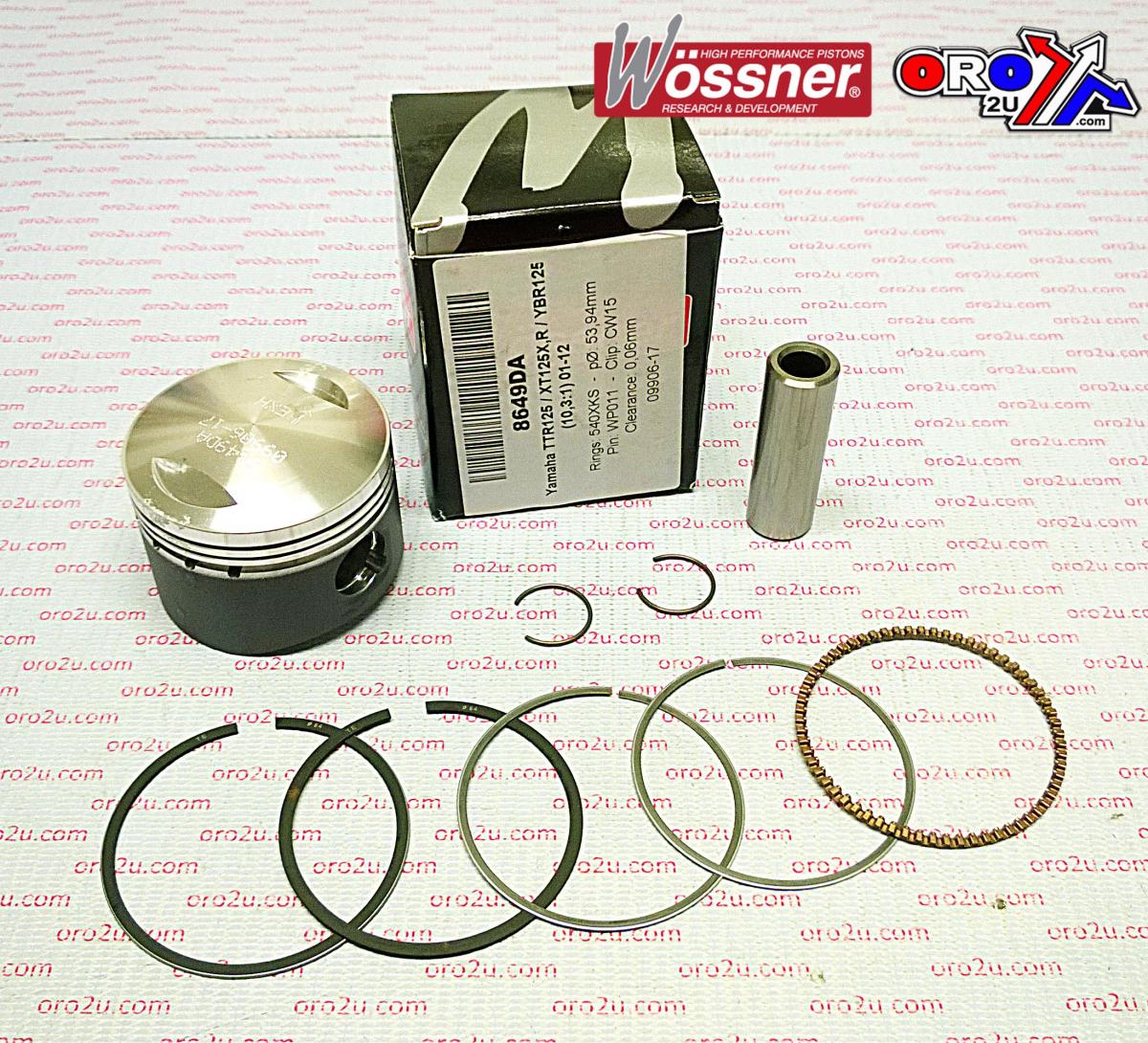

PISTON KIT 00-12 TTR125 54.00, FORGED WOSSNER 8649DA, 5HP-11631-00-A0

Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.

Features

• Forged piston for enhanced strength and durability
• Optimized heat transfer for efficient combustion
• Elliptical design to prevent piston collapse
• Manufactured in Germany

Specifications

• Bore Size: 54.00mm
• Actual Bore Diameter: 53.94mm
• Displacement: 124 cm³
• Stroke: 54.00mm
• Clearance: 0.06mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 10.30:1
• Dome Volume: +4.10 cm³
• Compression Height: 20.20mm
• Theoretical Weight: Not specified

Included Components

• Lock Part Number: CW15
• Pin Part Number: WP011
• Ring Set Part Number: 540XKS

Cross-Reference OEM Part Numbers

• 5HP-11631-00-A0

Vehicle Fitments

• Yamaha TTR125 (2001-2013)
• Yamaha XT125X (2001-2013)
• Yamaha XT125XR (2001-2013)
• Yamaha YBR125 (2001-2013)
