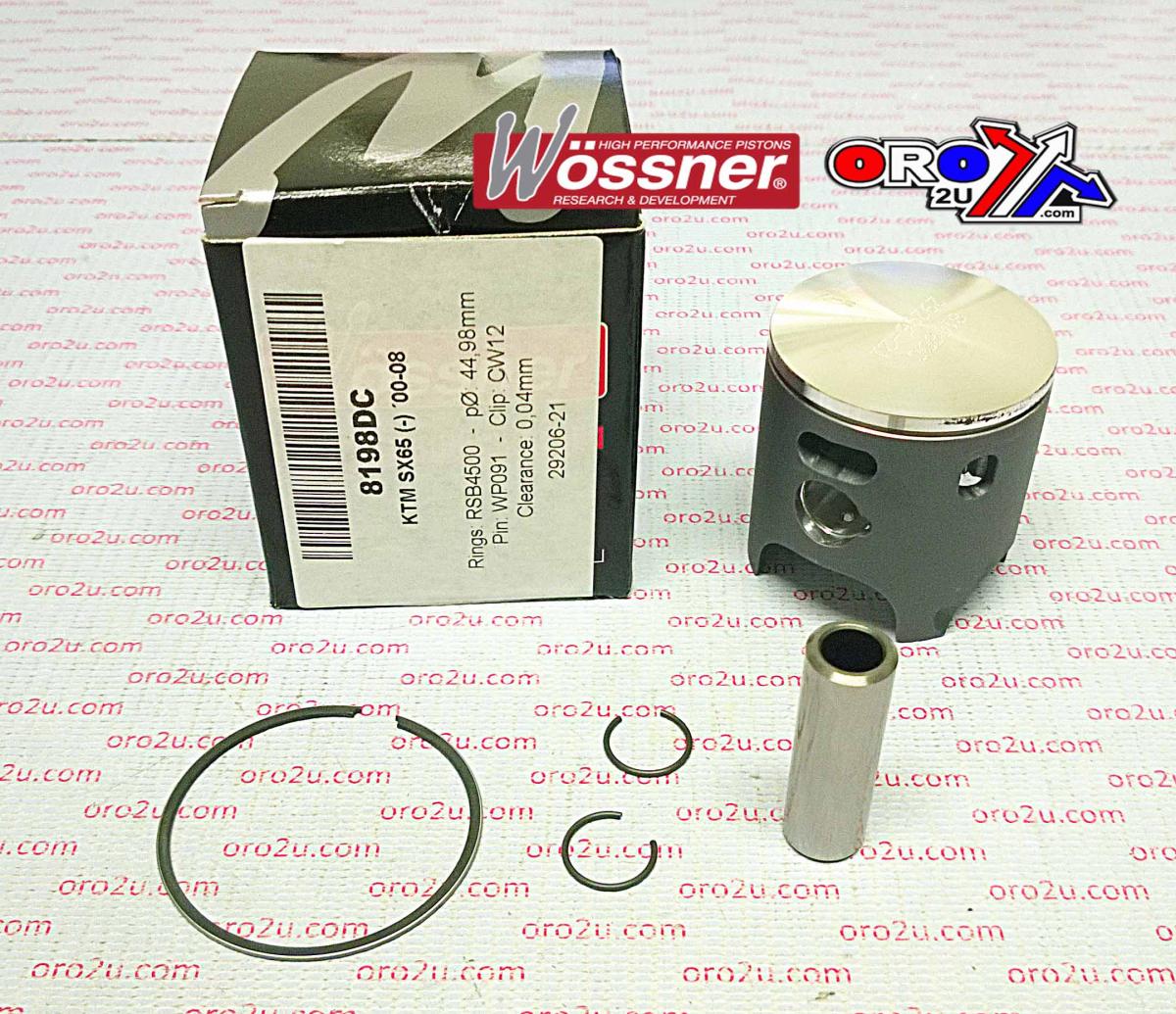

PISTON KIT 00-08 SX65 45.00 C, WOSSNER 8198DC KTM MX

Piston kit 45.02mm Bore 44.98 Wossner 8198DC (+0.02)

KTM
SX65 2000 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W746.C.WO (oro2u.com)
Wossner Piston KTM SX65 45.02 mm Bore (PN# 8198DC)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB4500
Rod P/N P2002

Display (cm3) 63
Hub stroke (mm) 40.00
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 21.70
Theorectical weight (G)

1997 KTM SX 65 - 1998 KTM SX 65 - 1999 KTM SX 65 - 2000 KTM SX 65 - 2001 KTM SX 65 - 2002 KTM SX 65

- 2003 KTM SX 65 - 2004 KTM SX 65 - 2005 KTM SX 65 - 2006 KTM SX 65 - 2007 KTM SX 65 - 2008 KTM SX 65
