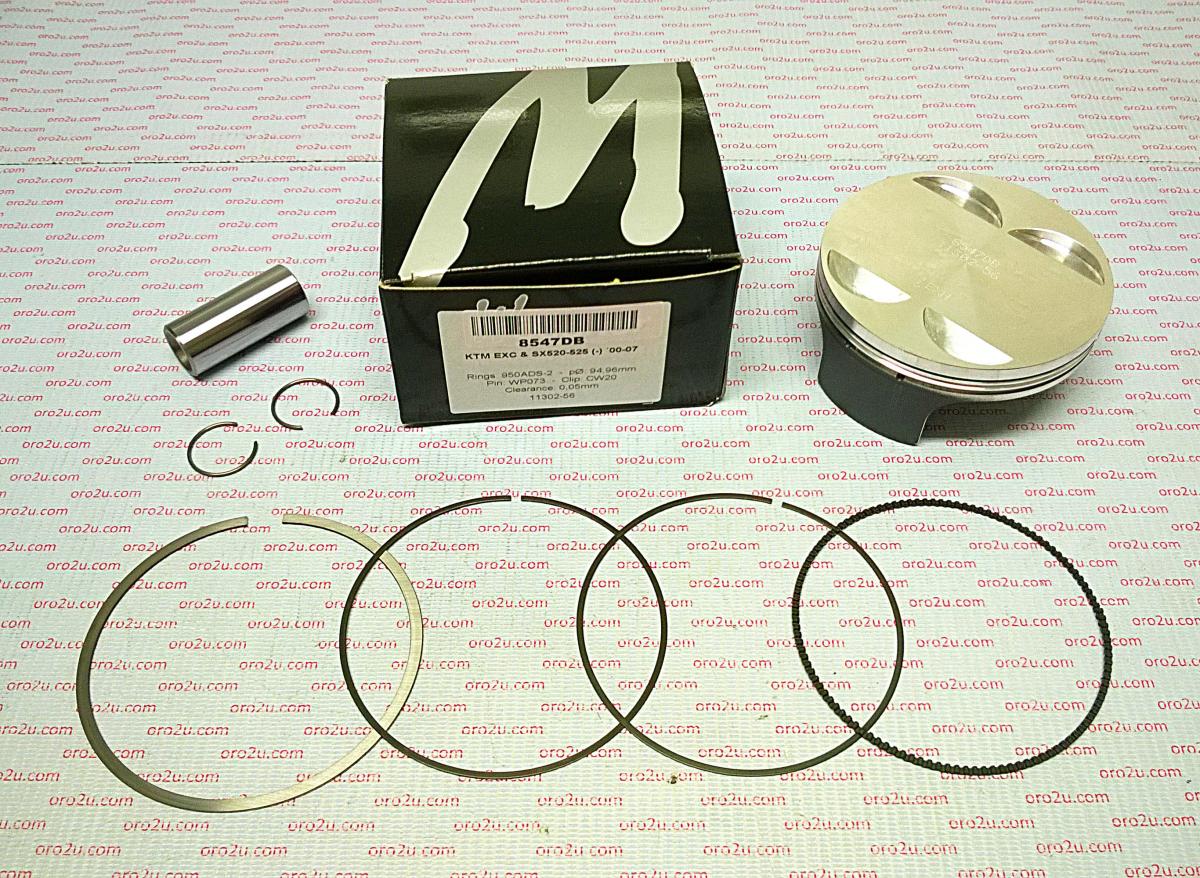

PISTON KIT 00-07 KTM520 525 95, WOSSNER 8547DB BETA RR525

Piston kit 95.01mm Bore 94.96 Wossner 8547DB (+0.01)

BETA
RR525 2005 - 2009,

KTM
SX-EXC 520 2000 - 2002,
SX-EXC 525 Racing 2003 - 2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4731.B.WO (oro2u.com)
Wossner Piston KTM EXC520 95.01 mm Bore (PN# 8547DB)
Lock P/N CW20
Pin P/N WP038
Ring Set P/N 950ADS-2

Display (cm3) 510
Hub stroke (mm) 54.80
Clearance (mm) 0.04
Wossner compression Ratio: 12.90:1
OEM Compression ratio: 12.80:1
Dome volume (cm3) 1.20
Compression height (mm) 19.50
Theorectical weight (G)

2000 KTM EXC 200 2000 KTM SX 520 2000 KTM SX 525 2001 KTM EXC 525 2001 KTM SX 520 2001 KTM SX 525 2002 KTM EXC 525 2002 KTM SX 520

2002 KTM SX 525 2003 KTM EXC 525 2003 KTM SX 520 2003 KTM SX 525 2004 KTM EXC 525 2004 KTM SX 520 2004 KTM SX 525 2005 KTM EXC 525 2005 KTM SX 520
