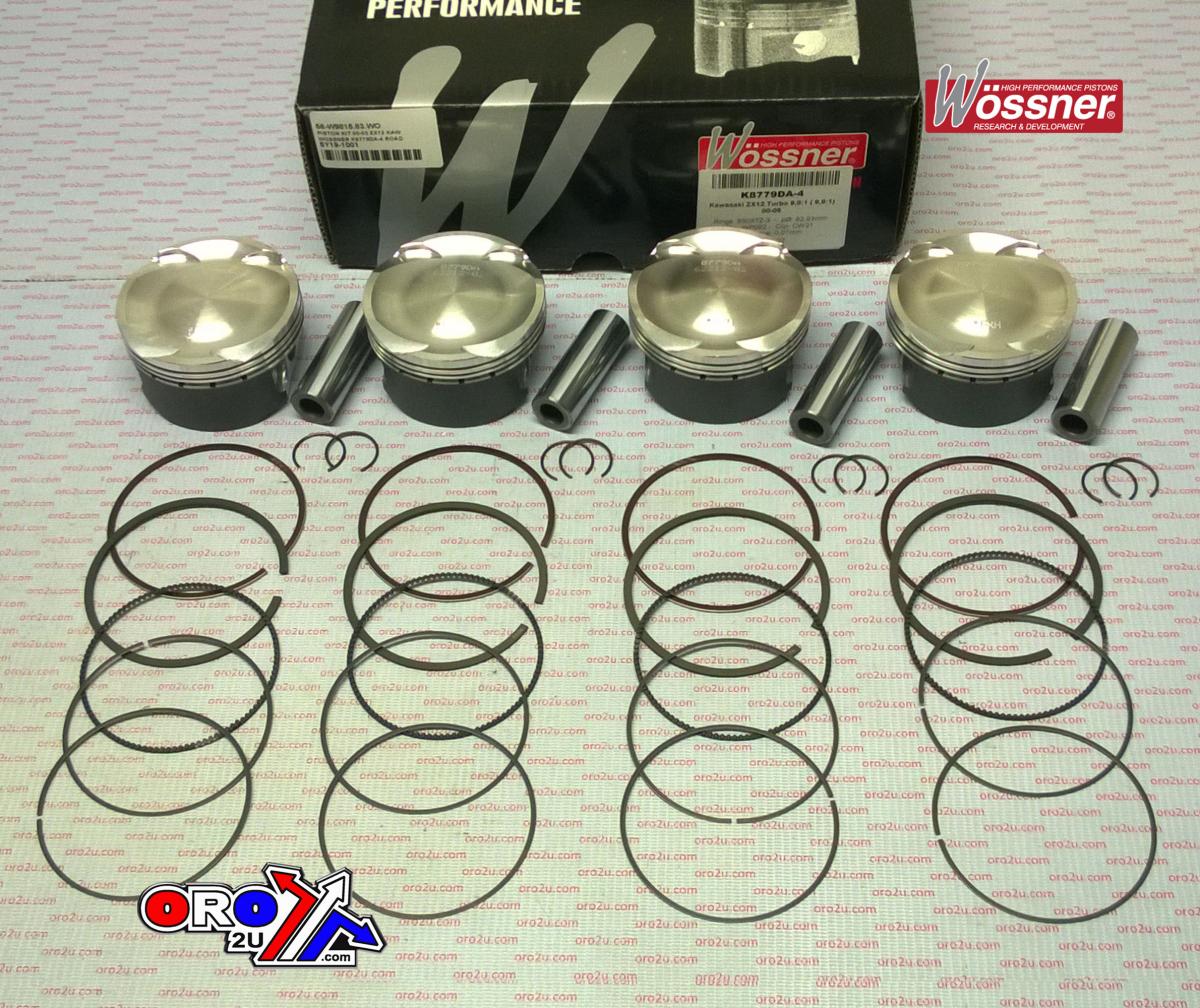

PISTON KIT 00-05 ZX12 KAW, WOSSNER K8779DA-4 ROAD, KAWASAKI

KAWASAKI
ZX12 2000 - 2005,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9815.83.WO (phoenixmotos.com)
KAWASAKI 2000 - 2005 ZX12 TURBO K8779DA-4 WOSSNER PISTON, 83(mm),
Lock P/N CW21
Pin P/N WP092
Ring Set P/N 830XTY

Display (cm3) 1198 / 1257
Hub stroke (mm) 55.40
Clearance (mm) 0.07
Wossner compression Ratio: 9.80:1
OEM Compression ratio: 12.20:1
Dome volume (cm3) -9.80
Compression height (mm) 25.00
Theorectical weight (G)
