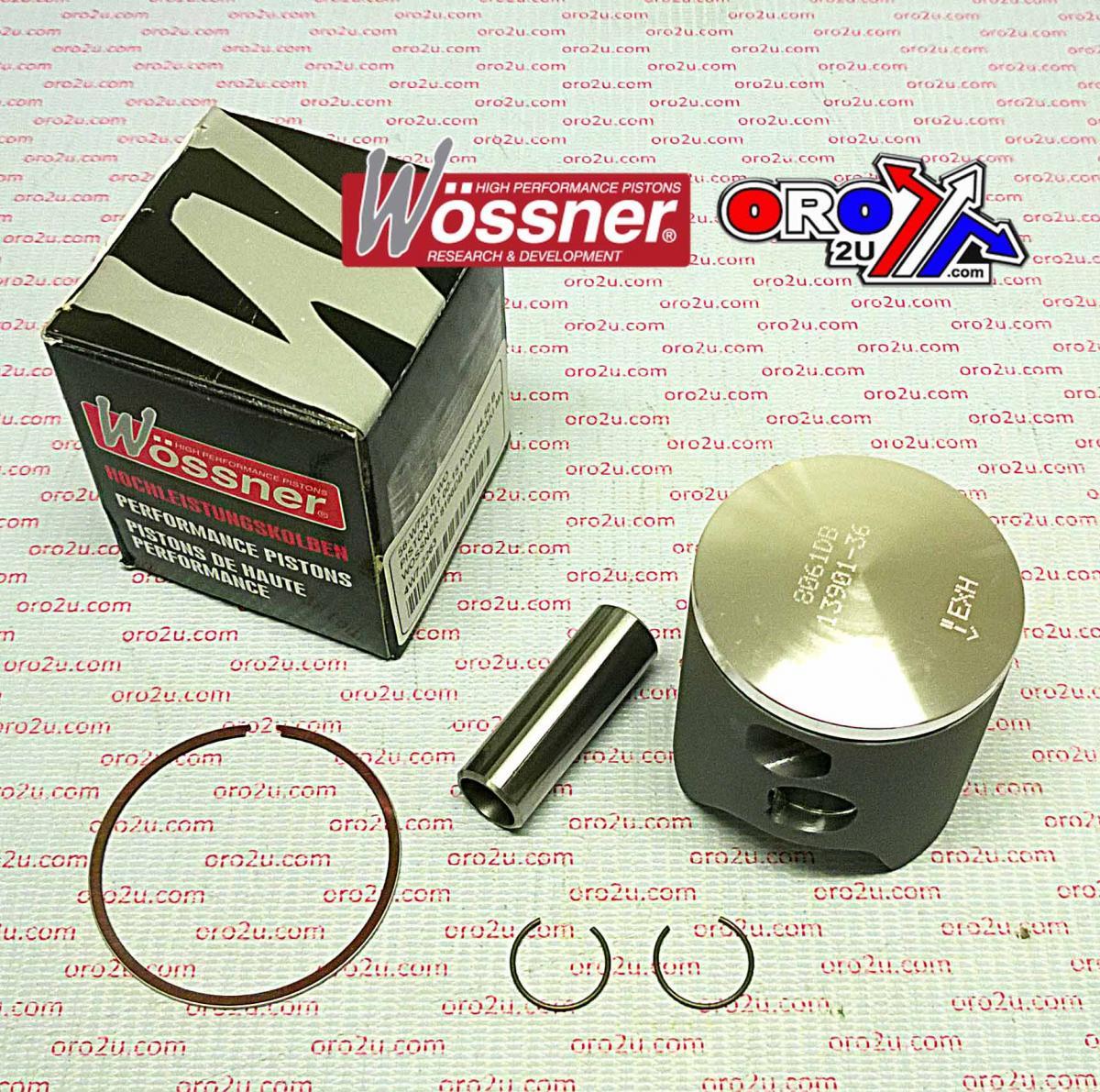

PISTON KIT 00-03 RM125 56.00, WOSSNER 8061D200 SUZUKI MX

Piston kit 56mm Bore 55.95 Wossner 8061D200 (+2.00)

SUZUKI
RM125 2000 - 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W754.200.WO (oro2u.com)
Wossner Piston Suzuki RM125 56 mm Bore (PN# 8061D200)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5600
Rod P/N P2013

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
