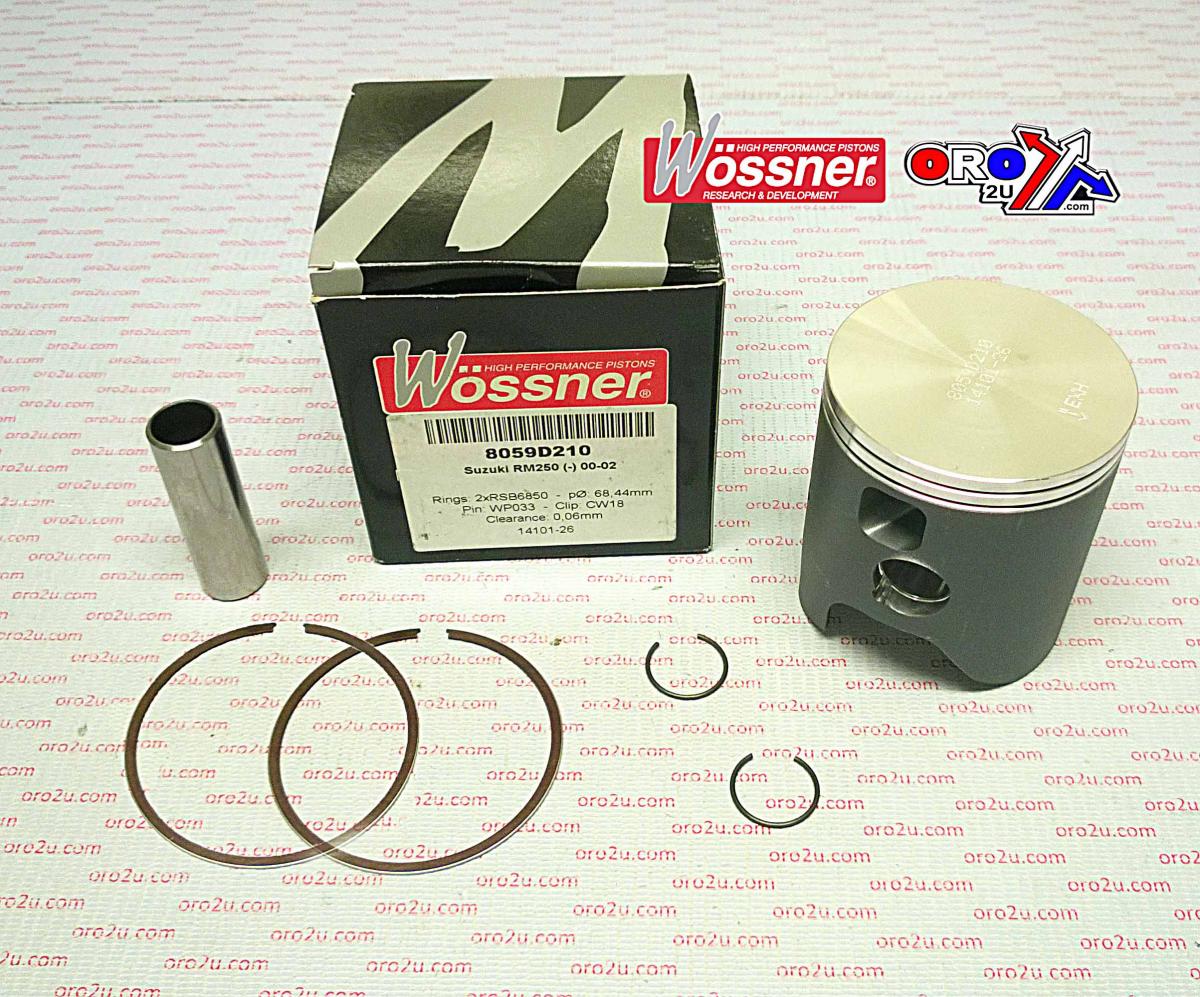

PISTON KIT 00-02 RM250 66.40 A, WOSSNER 8059DA SUZUKI MX 12110-37E30-0F0

Piston kit 66.40mm Bore 66.34 Wossner 8059DA (STD)

SUZUKI
RM250 2000 - 2002,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W756.A.WO (oro2u.com)
Wossner Piston Suzuki RM250 66.40 mm Bore (PN# 8059DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 X 2
Rod P/N P2026

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Select your car to see if this product fits:
- 2000 Suzuki RM 250 - 2001 Suzuki RM 250 - 2002 Suzuki RM 250
